400W Enhance Energy Yield with 182 P-type Bifacial Module and Monocrystalline Silicon Panels
Product Description:
The 182 P-type Bifacial Module is designed for applications requiring high efficiency and reliability. This module features a power range of 400W to 415W, making it suitable for a variety of solar installations. The bifacial design allows for energy generation from both sides, enhancing overall performance and increasing energy yield. With a maximum efficiency of 21.25%, this module is optimized for capturing more sunlight and converting it into usable energy.
| Electrical Performance Parameters |STC | ||||||||
| Model Type | 400D(HBD) 54(182) |
405D(HBD) 54(182) |
410D(HBD) 54(182) |
415D(HBD) 54(182) |
||||
| Nominal Max.Power | Pmax(W) | 400 | 405 | 410 | 415 | |||
| Max.Power Voltage | Vmp(V) | 31.13 | 31.35 | 31.57 | 31.79 | |||
| Max.Power Current | Imp(A) | 12.85 | 12.92 | 12.99 | 13.06 | |||
| Open Circuit Voltage | Voc(V) | 36.96 | 37.08 | 37.20 | 37.34 | |||
| Short Circuit Current | Isc(A) | 13.74 | 13.81 | 13.88 | 13.95 | |||
| Module Efficiency | (%) | 20.48 | 20.74 | 21.00 | 21.25 | |||
| PowerOutput Tolerance | (W) | 0~+5W | ||||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,AirMass AM1.5. ·Power measurement tolerance ±3%. |
||||||||
| Electrical Performance Parameters |NMOT | ||||||||
| Model Type | 400D(HBD) 54(182) |
405D(HBD) 54(182) |
410D(HBD) 54(182) |
415D(HBD) 54(182) |
||||
| Nominal Max.Power | Pmax(W) | 275 | 282 | 287 | 292 | |||
| Max.Power Voltage | Vmp(V) | 26.55 | 27.12 | 27.50 | 27.87 | |||
| Max.Power Current | Imp(A) | 10.36 | 10.40 | 10.44 | 10.48 | |||
| Open Circuit Voltage | Voc(V) | 34.62 | 34.74 | 34.86 | 35.00 | |||
| Short Circuit Current | Isc(A) | 11.09 | 11.15 | 11.20 | 11.26 | |||
| *NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
||||||||
| Structure Performance | ||||||||
| Solar Cell Type | 182mm Mono-crystalline(Half Cell) | |||||||
| Solar Cell Arrangement | 108pcs(6×18) | |||||||

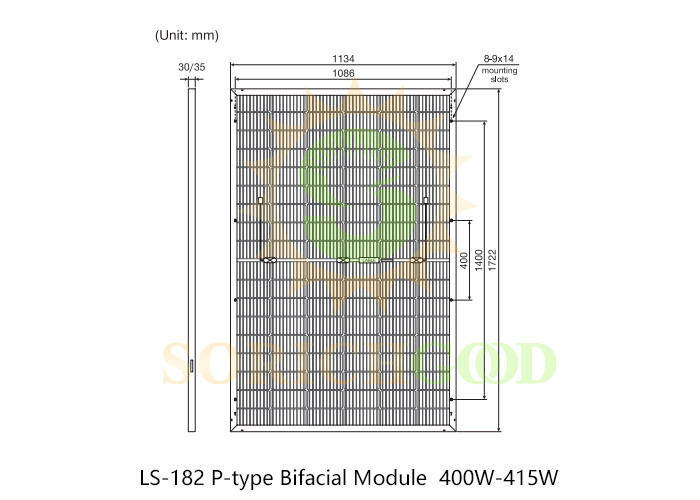

| Module Dimension | 1722×1134×35mm/30mm | |||||||
| Weight | 24.1kg(35mm)/23.4kg(30mm) | |||||||
| Front Glass | 2.0mm,highly transparent tempered glass with anti-reflective coating |
|||||||
| Frame | Anodized Aluminum Alloy | |||||||
| Junction Box | IP68 rated | |||||||
| Cable | 4mm²,portrait | 400mm(+).landscape 200mm(- |
1400mm(t) 1400mm(-) |
|||||
| Length can be customized | ||||||||
| DiodeQuantity | 3 pcs | |||||||
| Front side/Rear side | 5400pa/2400pa | |||||||
| Connector | MC4 Compatible | |||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | |||||||
| Per Container(40'HQ) | 806pcs(35mm)/936pcs(30mm) | |||||||
| Temperature Characteristics | ||||||||
| Nominal Module Operating Temperature | 44±2℃ | |||||||
| Temperature Coefficient (Isc) | +0.048% | |||||||
| Temperature Coefficient (Voc) | -0.26% | |||||||
| Temperature Coefficient (Pmax) | -0.34% | |||||||
| Maximum Parameters | ||||||||
| WorkingTemperature | -40~+85℃ | |||||||
| Maximum System Voltage | 1500V DC | |||||||
| Nominal Maximum Fuse Current | 25A | |||||||
Application:
Ideal for utility-scale solar farms and commercial rooftop installations, where maximizing energy output and land use efficiency is crucial. The bifacial design is especially beneficial in areas with reflective surfaces such as snow or light-colored rooftops, where additional energy can be harvested from the rear side of the module.
