The 182 N-TopCon Bifacial Polyurethane Composite Module offers a power range of 555W to 585W with an outstanding efficiency of up to 22.65%. This module is designed with cutting-edge bifacial technology, maximizing energy output from both sides. Its polyurethane composite frame provides enhanced durability and weather resistance, making it ideal for challenging environmental conditions. The module features 144 half-cut cells, which improve performance under partial shading and reduce hot spot risks. With a robust IP68-rated junction box and high-quality tempered glass, this module is built for long-term reliability and high performance in various applications.
| Electrical Performance Parameters |STC | ||||||||
| Model Type | 555C(HBD) 72(182) |
560C(HBD) 72(182) |
565C(HBD) 72(182) |
570C(HBD) 72(182) |
575C(HBD) 72(182) |
580C(HBD) 72(182) |
585C(HBD) 72(182) |
|
| Nominal Max.Power | Pmax(W) | 555 | 560 | 565 | 570 | 575 | 580 | 585 |
| Max.Power Voltage | Vmp(V) | 41.92 | 42.11 | 42.30 | 42.45 | 42.60 | 42.75 | 42.89 |
| Max.Power Current | Imp(A) | 13.24 | 13.30 | 13.36 | 13.43 | 13.50 | 13.57 | 13.64 |
| Open Circuit Voltage | Voc(V) | 50.43 | 50.63 | 50.83 | 51.03 | 51.23 | 51.43 | 51.63 |
| Short Circuit Current | Isc(A) | 14.03 | 14.09 | 14.15 | 14.21 | 14.27 | 14.33 | 14.39 |
| Module Efficiency | (%) | 21.48 | 21.68 | 21.87 | 22.07 | 22.26 | 22.45 | 22.65 |
| Power Output Tolerance | (W) | 0~+5W | ||||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. ‘Power measurement tolerance ±3%. |
||||||||
| Electrical Performance Parameters |NMOT | ||||||||
| Model Type | 555C(HBD) 560C(HBD) 565C(HBD)570C(HBD) 575C(HBD) 580C(HBD) 585C(HBD) 72(182) 72(182) 72(182) 72(182) 72(182) 72(182) 72(182) |
|||||||
| Nominal Max.Power Pmax(W) | 417 421 425 429 433 437 441 | |||||||
| Max.Power Voltage Vmp(V) | 39.42 39.57 39.72 39.87 40.02 40.17 40.32 | |||||||
| Max.Power Current Imp(A) | 10.58 10.64 10.70 10.76 10.82 10.88 10.94 | |||||||
| Open Circuit Voltage Voc(V) | 47.90 48.09 48.28 48.47 48.66 48.85 49.04 | |||||||
| ShortCircuitCurrent Isc(A) | 11.32 11.37 11.42 11.46 11.51 11.56 11.61 | |||||||
| ·NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
||||||||
| Structure Performance | ||||||||
| Solar Cell Type | 182mm N-TopCon Mono Cell(Half Cell) | |||||||
| Solar Cell Arrangement | 144pcs(G×24) | |||||||

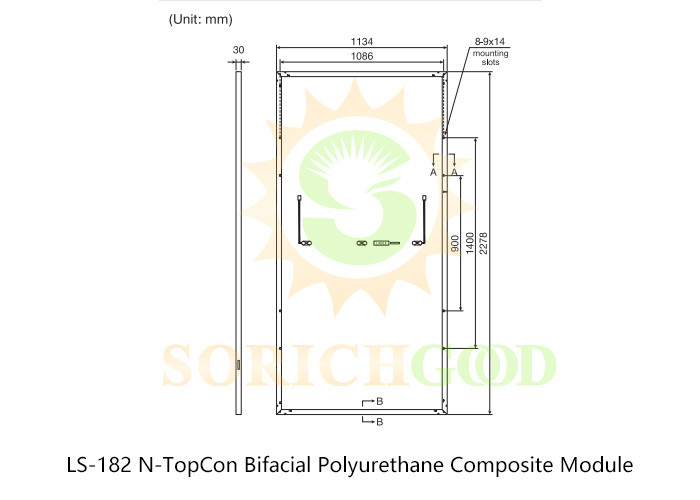

| Module Dimension | 2278×1134×30mm | |||||||
| Weight | 30.6kg | |||||||
| Front Glass | 2.0mm,highly transparent tempered glass with anti-reflective coating |
|||||||
| Frame | Polyurethane Composite Frame | |||||||
| Junction Box | IP68 rated | |||||||
| Diode Quantity | 3 pcs | |||||||
| Front side/Rear side | 5400pa/2400pa | |||||||
| Connector | MC4 Compatible | |||||||
| Per Pallet | 36pcs | |||||||
| Per Container(40'HQ) | 720pcs | |||||||
| Temperature Characteristics | ||||||||
| Nominal Module Operating Temperature | 44±2℃ | |||||||
| Temperature Coefficient(lsc) | +0.043% | |||||||
| Temperature Coefficient (Voc) | -0.25% | |||||||
| Temperature Coefficient(Pmax) | -0.30% | |||||||
| Maximum Parameters | ||||||||
| Working Temperature | -40~+85℃ | |||||||
| Maximum System Voltage | 1500V DC | |||||||
| Nominal Maximum Fuse Current | 30A | |||||||
The 182 N-TopCon Bifacial Polyurethane Composite Module is perfect for utility-scale solar farms, commercial rooftop installations, and other large-scale solar projects where maximum energy yield and long-term durability are crucial. Its bifacial design also makes it ideal for installations where ground reflection or light from surrounding surfaces can be utilized to increase energy production.
