Robust 545W Monocrystalline Silicon Panels with 21.3% Module Efficiency for Maximum Energy Yield
Product Description:
This high-efficiency 545W mono-crystalline solar panel is designed for optimal performance in both residential and commercial solar installations. With an impressive module efficiency of up to 21.3%, it ensures maximum energy yield even in low-light conditions. The panel's robust construction, featuring an anodized aluminum frame and 3.2mm front glass, offers excellent durability and weather resistance. The 144-cell layout ensures higher power output and reliability. With a junction box rated at IP68 and a maximum system voltage of 1500V, this panel is well-suited for large-scale projects. Its advanced PERC technology ensures superior temperature performance, making it ideal for diverse climates.
| Electrical Specifications | |||||
| STC:Iradiance 1000W/m²,cell Temperature 25°C,AM=1.5 | |||||
| Rated output (Pmpp/Wp) | 535 | 540 | 545 | 550 | |
| Rated voltage(Vmpp/V) | 41.60 | 41.76 | 41.93 | 42.10 | |
| Rated current(Impp/A) | 12.86 | 12.93 | 13.00 | 13.06 | |
| Open circuit voltage (Voc/V) | 49.50 | 49.70 | 49.90 | 50.10 | |
| Short circuit current(Isc/A) | 13.61 | 13.72 | 13.81 | 13.90 | |
| Moduleefficiency | 20.7% | 20.9% | 21.1% | 21.3% | |
| NMOT:tradiance 800W/m²,AmbientTemperature20°C,AM=1.5,Wind speed 1m/s | |||||
| Rated output (Pmpp/Wp) | 399.8 | 403.5 | 407.3 | 411.0 | |
| Rated voltage (Vmpp/V | 38.77 | 38.92 | 39.08 | 39.24 | |
| Rated current (Impp/A) | 10.31 | 10.37 | 10.42 | 10.48 | |
| Open circuitvoltage (Voc/V) | 46.78 | 46.97 | 47.16 | 47.34 | |
| Short circuit current (Isc /A) | 11.04 | 11.13 | 11.20 | 11.27 | |
| Temperature Ratings (STC) Operating Parameters | |||||
| Temperature coefficient (Pmpp) | -0.35%/°C | No.of diodes | 3 | ||
| Temperature coefficient (Isc) | +0.045%/°C | Junction box IP rating | IP 68 | ||
| Temperature coefficient (Voc) | -0.27%/℃ | Max.series fuse rating | 25A | ||
| Nominalmodule operating temperature(NMOT) |
41±2℃ | Max.system voltage(IEC/UL) | 3500V | ||

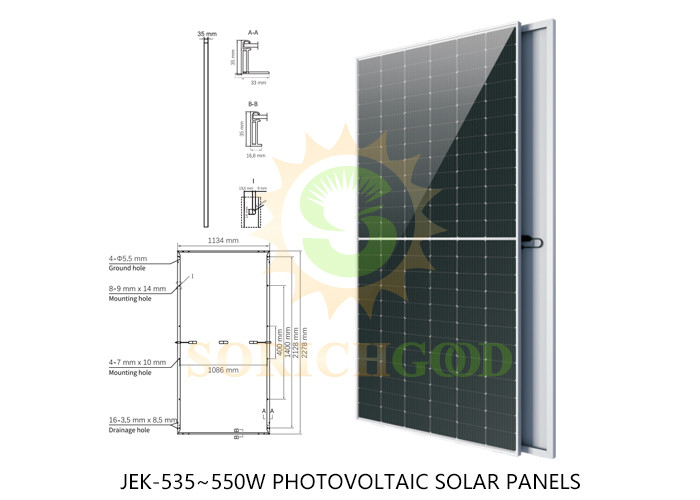

| Mechanical Specifications | |||||||
| Outerdimensions (LxWxH) | 2278x1134x35mm | Maximum mechanical testload | 5400Pa(front)/2400 Pa(back) | ||||
| Cell Type | P type Mono-crystalline | Connector type(IEC/UL) | HCB40/MC4-EVO2(optional) | ||||
| No.of cells | 144(6*24) | Module weight | 26.9kg | ||||
| Frame technology | Aluminum,silver anodized | Packing unit | 31 pcs/box(Subjectto sales contract) | ||||
| Front glass thickness | 3.2 mm | Weight of packing unit (for 40'HQ container) |
893 kg | ||||
| Cable length (IEC/UL) | Portrait:300 mm;Landscape:1400 mm | Modules per 40'HQ container | 620 pcs | ||||
| Cable diameter (IEC/UL) | 4mm²/12 AWG | ||||||
Application:
This solar panel is ideal for a wide range of applications, including rooftop residential installations, commercial buildings, and large solar farms. It is compatible with both grid-tied and off-grid systems, making it a versatile choice for users looking to maximize energy efficiency in various environments.
