465W 182 N-TopCon Monofacial Module The Perfect Combination of Performance and Reliability
Product Description
The 182 N-TopCon Monofacial Module with a power range of 465W to 480W is an advanced solar panel solution designed for superior energy generation. With an impressive maximum efficiency of 22.17%, this module ensures high energy output even in challenging environmental conditions. The module is constructed with 182mm N-TopCon Mono Cells arranged in a 120pcs (6x20) configuration, offering enhanced performance through reduced resistance and increased power density. The robust anodized aluminum alloy frame and IP68-rated junction box ensure durability and long-term reliability.
| Electrical Performance Parameters |STC | |||||||
| Model Type | 465C/HPM) 60(182 |
470C(HPM) 60(182) |
475C(HPM) 60(182) |
480C(HPM) 60(182) |
|||
| Nominal Max.Power | Pmax(W) | 465 | 470 | 475 | 480 | ||
| Max.Power Voltage | Vmp(V) | 35.02 | 35.18 | 35.35 | 35.51 | ||
| Max.Power Current | Imp(A) | 13.28 | 13.36 | 13.44 | 13.52 | ||
| Open Circuit Voltage | Voc(V) | 42.18 | 42.34 | 42.50 | 42.67 | ||
| Short CircuitCurrent | lsc(A) | 14.03 | 14.11 | 14.19 | 14.27 | ||
| Module Eficiency | (%) | 21.48 | 21.71 | 21.94 | 22.17 | ||
| Power Output Tolerance | (W) | 0~+5W | |||||
| *STC:Iradiance 1000W/m², Cell Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%. |
|||||||
| Electrical Performance Parameters |NMOT | |||||||
| Model Type | 465CXHPM) 60(182) |
470C(HPM) 60(182) |
475C(HPM) 60(182) |
480C(HPM) 60182) |
|||
| Nominal Max.Power | Pmax(W) | 350 | 354 | 358 | 362 | ||
| Max.Power Voitage | Vmp(V) | 32.96 | 33.15 | 33.34 | 33.52 | ||
| Max.Power Current | Imp(A) | 10.62 | 10.68 | 10.74 | 10.80 | ||
| OpenCircuitVoltage | Voc(V) | 40.13 | 40.29 | 40.45 | 40.61 | ||
| Short CircuitCurrent | lsc(A) | 11.35 | 11.42 | 11.49 | 11.56 | ||
| ·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%. |
|||||||
| Structure Performance | |||||||
| Solar Cell Type | 182mm N-TopCon Mono Cell(Half Cell) | ||||||
| Solar Cell Arrangement | 120pcs(6×20) | ||||||

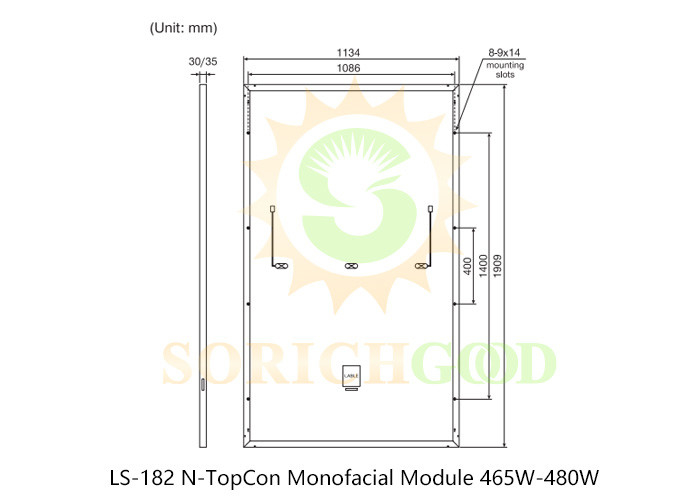

| Module Dimension | 1909×1134×35mm/30mm | ||||||
| Weight | 23.2kg(35mm)/22.1kg(30mm) | ||||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
||||||
| Back Sheet | White | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| Junction Box | IP68 rated | ||||||
| Diode Quantity | 3 pcs | ||||||
| Front side/Rear side | 5400pa/2400pa | ||||||
| Connector | MC4 Compatible | ||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | ||||||
| Per Container(40'HQ) | 744pcs(35mm)/864pcs(30mm) | ||||||
| Temperature Characteristics | |||||||
| Nominal Module Operating Temperature | 44±2℃ | ||||||
| Temperature Coefficient (Isc) | +0.043% | ||||||
| Temperature Coefficient (Voc) | -0.25% | ||||||
| Temperature Coefficient(Pmax) | -0.30% | ||||||
| Maximum Parameters | |||||||
| Working Temperature | -40~+85℃ | ||||||
| Maximum System Voltage | 1500V DC | ||||||
| Nominal Maximum Fuse Current | 25A | ||||||
Application
Ideal for residential, commercial, and industrial rooftop installations, the 182 N-TopCon Monofacial Module is engineered to maximize energy production and efficiency. Its high output tolerance and advanced cell technology make it suitable for deployment in various geographic locations, including areas with high temperatures and low light conditions.
Shipping Methods
Supports global air and sea shipping, ensuring flexible and reliable delivery options to meet the demands of various project timelines.
