The 182mm N-TopCon Monofacial Module (415W-430W) represents the latest innovation in photovoltaic technology, designed for maximum efficiency and performance across a wide range of environmental conditions. Utilizing advanced N-TopCon mono cells, this module achieves up to 22.02% efficiency, making it one of the highest-performing modules available. The superior weak illumination response and ZERO LID (Light-Induced Degradation) ensure consistent power generation even in low-light conditions, such as cloudy or foggy days. The module's enhanced temperature coefficient guarantees better performance in higher temperatures, while the lower LCOE (Levelized Cost of Energy) offers an excellent return on investment. The module's robust design, featuring anodized aluminum alloy frames and high-transparency tempered glass, ensures durability and longevity, even in challenging environments.
| Electrical Performance Parameters |STC | ||||||||
| Model Type | 415C(HPM) 54(182) |
420C(HPM) 54(182) |
425C(HPM) 54(182) |
430C(HPM) 54(182) |
||||
| Nominal Max.Power | Pmax(W) | 415 | 420 | 425 | 430 | |||
| Max.Power Voltage | Vmp(V) | 31.44 | 31.63 | 31.82 | 32.00 | |||
| Max.Power Current | Imp(A) | 13.20 | 13.28 | 13.36 | 13.44 | |||
| Open Circuit Voltage | Voc(V) | 37.97 | 38.16 | 38.35 | 38.54 | |||
| Short Circuit Current | Isc(A) | 13.97 | 14.05 | 14.13 | 14.21 | |||
| Module Efficiency | (%) | 21.25 | 21.51 | 21.76 | 22.02 | |||
| Power Output Tolerance | (W) | 0~+5W | ||||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%. |
||||||||
| Electrical Performance Parameters |NMOT | ||||||||
| Model Type | 415C(HPM) 54(182) |
420C(HPM 54(182) |
425C(HPM) 54(182) |
430C(HPM 54(182) |
||||
| Nominal Max.Power | Pmax(W) | 312 | 316 | 320 | 323 | |||
| Max.Power Voltage | Vmp(V) | 29.36 | 29.51 | 29.69 | 29.75 | |||
| Max.Power Current | Imp(A) | 10.63 | 10.71 | 10.78 | 10.86 | |||
| Open Circuit Voltage | Voc(V) | 36.07 | 36.25 | 36.43 | 36.61 | |||
| Short Circuit Current | Isc(A) | 11.28 | 11.35 | 11.42 | 11.49 | |||
| *NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
||||||||
|
||||||||
| Solar Cell Type | 182mm N-TopCon Mono Cell (Half Cell) | |||||||
| Solar Cell Arrangement | 108pcs(6×18) | |||||||

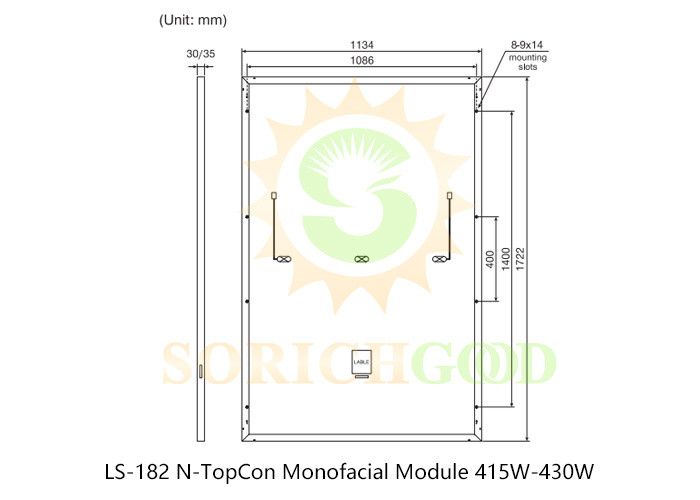

| Module Dimension | 1722×1134×35mm/30mm | |||||||
| Weight | 21.7kg(35mm)/20.6kg(30mm) | |||||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
|||||||
| Back Sheet | White | |||||||
| Frame | Anodized Aluminum Alloy | |||||||
| Junction Box | IP68 rated | |||||||
| Diode Quantity | 3 pcs | |||||||
| Front side/Rear side | 5400pa/2400pa | |||||||
| Connector | MC4 Compatible | |||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | |||||||
| Per Container(40'HQ) | 806pcs(35mm)/936pcs(30mm) | |||||||
| Temperature Characteristics | ||||||||
| Nominal Module Operating Temperature | 44±2℃ | |||||||
| Temperature Coefficient(Isc) | +0.043% | |||||||
| Temperature Coefficient (Voc) | -0.25% | |||||||
| Temperature Coefficient(Pmax) | -0.30% | |||||||
| Maximum Parameters | ||||||||
| Working Temperature | -40~+85℃ | |||||||
| Maximum System Voltage | 1500V DC | |||||||
| Nominal Maximum Fuse Current | 25A | |||||||
The 182mm N-TopCon Monofacial Module is ideal for residential, commercial, and utility-scale projects where efficiency and long-term performance are critical. Its high efficiency and superior temperature performance make it especially suitable for installations in areas with high temperatures or frequent cloudy weather. The module's robust construction and resistance to harsh environmental conditions, such as high winds and snow loads, make it an excellent choice for various applications, including rooftop installations, ground-mounted systems, and even solar farms in challenging climates.
