525W-550W Monocrystalline Silicon Panels For Large Scale Solar Power Installations

525W-550W Monocrystalline Silicon Panels for Large-Scale Solar Power Installations

Product Description

This advanced 182 P-type Monofacial Module offers a remarkable power range from 525W to 550W, featuring a high maximum efficiency of 21.29%. Designed with 144 (6x24) half-cut cells, the module delivers exceptional performance with superior energy conversion efficiency. Its robust structure includes a 3.2mm highly transparent tempered glass with anti-reflective coating and an anodized aluminum alloy frame, ensuring long-term durability in various environmental conditions.

Electrical Performance Parameters |STC
ModelType		525D(HPM) 530D(HPM) 535D(HPM) 5400(HPM) 545D(HPM) 550D(HPM) 72(182) 72(182) 72(182) 72(182) 72(182) 72(182)
NominalMax.Power Pmax(W		525 530 535 540 545 550
Max.Power Voltage Vmp(V		41.00 41.20 41.40 41.60 41.80 42.00
Max.Power Current mp(A		12.81 12.87 12.92 12.98 13.04 13.10
Open CircuitVoltage Voo(V		48.82 49.02 49.22 49.42 49.62 49,82
Short Circuit Current Isc(A)		13.68 13.74 13.79 13.85 13.91 13.97
Module Efficlency (%)		20.32 20.52 20.71 20.90 21.10 21.29
Power Output Tolerance (W)		0~+5W
·STC:Irradiance 1000W/m²,Cell Temperature 25℃,AirMass AM1.5. ·Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
ModelType		525D(HPM 72(182)		530D(HPM) 72(182)	535D(HPM) 72(182)	540D(HPM) 72(182)	545D(HPM) 72(182)	550D(HPM) 72(182)
Nominal Max.Power	Pmax(W)	390		394	398	402	405	409
Max.Power Voltage	VmplV	37.57		37.74	37.91	38.08	38.25	38.42
Max.Power Current	Imp(A)	10.40		10.45	10.50	10.55	10.60	10.65
Open Circuit Voltage	Voc(V)	46.44		46.51	46.57	46.65	46.72	46.84
ShortCircuit Current	Isc(A)	11.03		11.10	11.14	11.19	11.26	11.33
··NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.

Structure Performance
Solar Cell Type			182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement			144pcs(6×24)

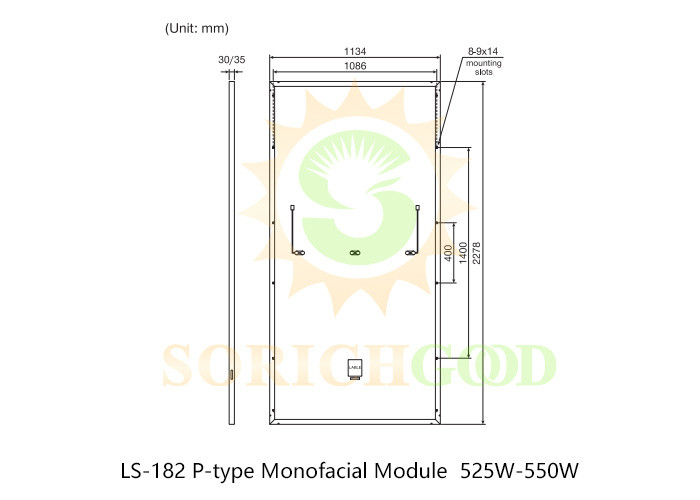

Module Dimension			2278×1134×35mm/30mm
Weight			28.0kg(35mm)/26.3kg(30mm)
Front Glass			3.2mm,highly transparent tempered glass with anti-reflective coating
Back Sheet			White
Frame			Anodized Aluminum Alloy
Junction Box			IP68 rated
Cable			4mm²,portrait 200mm,landscape m) (- Length can be customized
Diode Quantity			3 pcs
Front side/Rear side			5400pa/2400pa
Connector			MC4 Compatible
Per Pallet			31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ)			620pcs(35mm)/720pcs(30mm)

Application

This module is ideal for large-scale solar power installations, including commercial and utility-scale projects. Its high efficiency and power output make it particularly suitable for regions with high solar irradiance. Additionally, it is well-suited for projects that require space-efficient panel deployment without compromising energy generation capacity.

Shipping Methods

Supports global air and sea shipping.
