485W Powerful 21.06% Efficiency Monocrystalline Silicon Panels for Solar Applications
Product Description
The 182 P-type Monofacial Module is engineered for high efficiency and reliability, featuring a power range of 485W to 500W and a maximum efficiency of 21.06%. The module's monocrystalline half-cell design, with a 132-cell configuration, ensures optimal energy conversion, making it suitable for diverse solar applications. Its anodized aluminum alloy frame provides durability, while the IP68-rated junction box ensures protection against environmental factors. This module's advanced temperature characteristics, including a nominal operating temperature coefficient of -0.34%/°C, make it ideal for high-temperature regions. The module is also customizable with a black frame, enhancing its aesthetic appeal for residential installations.
| Electrical Performance Parameters |STC | |||||||
| Mode Type | 485D(HPM) 66(182) |
490D(HPM) 66(182) |
495D(HPM) 66(182) |
500D(HPM) 66(182) |
|||
| Nominal Max.Power | Pmax(W) | 485 | 490 | 495 | 500 | ||
| Max.PowerVoltage | Vmp(V) | 37.80 | 38.00 | 38.20 | 38.40 | ||
| Max.Power Current | Imp(A) | 12.84 | 12.90 | 12.96 | 13.03 | ||
| Open Circuit Voltage | Voc(V) | 44.87 | 45.07 | 45.27 | 45.47 | ||
| Short CircuitCurrent | sc(A) | 13.70 | 13.77 | 13.83 | 13.89 | ||
| Module Efficiency | (%) | 20.42 | 20.64 | 20.85 | 21.06 | ||
| PowerOutput Tolerance | (W) | 0~+5W | |||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%. |
|||||||
| Electrical Performance Parameters |NMOT | |||||||
| Model Type | 485D(HPM) 66(182) |
490D(HPM) 66(182 |
495D(HPM) 66(182) |
500D(HPM) 66(182) |
|||
| Nominal Max.Power | Pmax(W) | 365 | 370 | 375 | 380 | ||
| Max.PowerVoltage | Vmp(V) | 34.80 | 34.97 | 35.34 | 35.51 | ||
| Max.Power Current | Imp(A) | 10.50 | 10.60 | 10.62 | 10.71 | ||
| Open CircuitVoltage | Voc(V) | 42.31 | 42.45 | 42.70 | 42.87 | ||
| Short Circuit Current | lsc(A) | 11.07 | 11.13 | 11.23 | 11.30 | ||
| *NMOT:Irradiance 800W/m²,Cell Temperature 20°C,WindSpeed 1m/s. *Power measurement tolerance ±3%. |
|||||||
| Structure Performance | |||||||
| Solar Cell Type | 182mm Mono-crystalline (Half Cell) | ||||||
| Solar Cell Arrangement | 132pcs(6×22) | ||||||

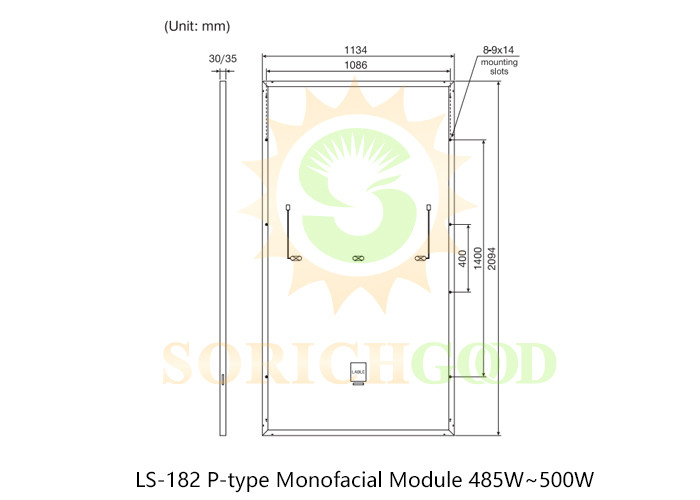

| Modu|e Dimension | 2094×1134×35mm/30mm | ||||||
| Weight | 25.1kg(35mm)/23.8kg(30mm) | ||||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
||||||
| Back Sheet | White | ||||||
| Frame | Anodized Aluminum Alloy(White/Black) | ||||||
| Junction Box | IP68 rated | ||||||
| Cable | 4mm²,portrait -(+)) ,landscape (+)(-) Length can be customized |
||||||
| Diode Quantity | 3 pcs | ||||||
| Front side/Rear side | 5400pa/2400pa | ||||||
| Connector | MC4 Compatible | ||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | ||||||
| Per Container(40'HQ) | 682pcs(35mm)/792pcs(30mm) | ||||||
| Temperature Characteristics | |||||||
| Nominal Module Operating Temperature | 44±2℃ | ||||||
| Temperature Coefficient (Isc) | +0.048% | ||||||
| Temperature Coefficient (Voc) | -0.26% | ||||||
| Temperature Coefficient (Pmax) | -0.34% | ||||||
| Maximum Parameters | |||||||
| Working Temperature | -40~+85℃ | ||||||
| Maximum System Voltage | 1500V DC | ||||||
| Nominal Maximum Fuse Current | 25A | ||||||
Application
This module is ideal for residential, commercial, and utility-scale solar projects, offering high efficiency and performance in various environmental conditions. Its ability to maintain performance in high temperatures and its customizable black frame option make it an excellent choice for applications where aesthetics and efficiency are both prioritized.
