Product Description:

The 182 P-type Monofacial Module offers an exceptional power range of 440W to 455W, designed to meet the high-efficiency needs of modern solar projects. With a maximum efficiency of 21.02%, this module is engineered to deliver superior energy output even in challenging conditions. It features an anodized aluminum alloy frame that provides robust protection, ensuring long-term durability and performance. The module's black or white frame options allow for aesthetic flexibility in various installations.

Electrical Performance Parameters |STC
ModelType		440D(HPM) 60(182)	445D(HPM) 60(182)		450D(HPM) 60(182)	455D(HPM) 60(182
Nominal Max.Power	Pmax(W)	440	445		450	455
Max.Power Voltage	Vmp(V)	34.13	34.33		34.53	34.73
Max.Power Current	Imp(A)	12.90	12.97		13.04	13.11
Open CircuitVoltage	Voc(V)	40.92	41.12		41.32	41.52
Short Circuit Current	Isc(A)	13.76	13.83		13.90	13.97
Module Efficiency	(%)	20.33	20.56		20.79	21.02
Power Output Tolerance	(W)	0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type		440D(HPM) 60(182)	445D(HPM) 60(182)		450D(HPM) 60(182)	455D(HPM) 60(182)
Nominal Max.Power	Pmax(W)	320	325		330	335
Max.Power Voltage	Vmp(V)	30.77	31.08		31.37	31.67
Max.Power Current	Imp(A)	10.40	10.46		10.52	10.58
Open Circuit Voltage	Voc(V)	38.72	38.79		38.87	39.01
Short Circuit Current	Isc(A)	10.64	10.69		10.74	10.79
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%.
Structure Performance
Solar Cell Type		182mm Mono-crystalline (Half Cell)
Solar Cell Arrangement		120pcs(6×20)

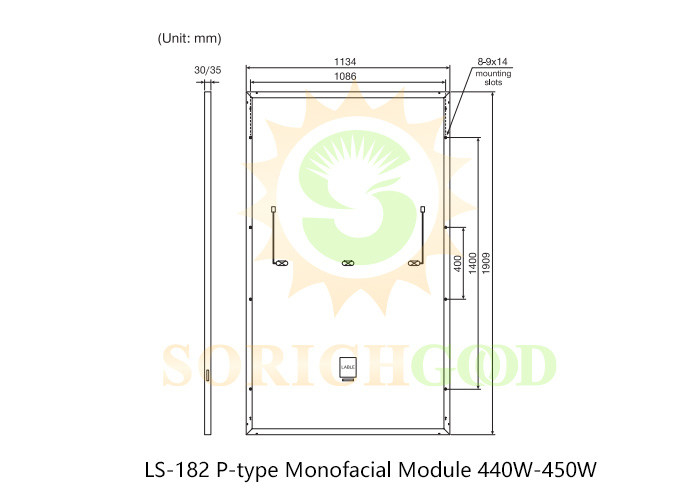

Module Dimension		1909×1134×35mm/30mm
Weight		23.2kg(35mm)/22.1kg(30mm)
Front Glass		3.2mm,highly transparent tempered glass with anti-reflective coating
Back Sheet		White
Frame		Anodized Aluminum Alloy(White/Black)
Junction Box		IP68 rated
Cable		4mm²,portrait 400mm(+) ,landscape 1400 00(m-m (+) 200mm(-) Length can be customized
Diode Quantity		3 pcs
Front side/Rear side		5400pa/2400pa
Connector		MC4 Compatible
Per Pallet		31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ)		744pcs(35mm)/864pcs(30mm)

Application:

This module is ideal for residential and commercial rooftop installations where high power output and space efficiency are critical. Its sleek design and customizable black frame option make it a preferred choice for projects requiring aesthetic integration with the building architecture. Additionally, its resilience to harsh environmental conditions ensures reliable performance in diverse climates.

Shipping Methods:

Supports global air and sea shipping.
