635W 210 Pure Black P-Type Monofacial Module For BIPV And Rooftop Systems

635W 210 Pure Black P-type Monofacial Module Monocrystalline Silicon Panels for BIPV and Rooftop Systems

Product Description

The 210 Pure Black P-type Monofacial Module integrates advanced 210mm large-size monocrystalline P-type half-cell technology, delivering superior performance and high energy conversion efficiency. This series offers a power range of 635W to 660W, making it ideal for large-scale photovoltaic power stations and distributed photovoltaic applications. The module's double-glass design ensures high stability and long service life even in extreme environments, with a maximum efficiency of up to 21.25%.

Electrical Performance Parameters |STC
Model Type		635D(BPM) 66(210)	640D(BPM) 66(210)	645D(BPM) 66(210)		650D(BPM) 66(210)	655D(BPM) 66(210)	660D(BPM) 66(210)
Nominal Max.Power	Pmax(W)	635	640	645		650	655	660
Max.Power Voltage	Vmp(V)	36.85	37.05	37.25		37.45	37.65	37.85
Max.Power Current	Imp(A)	17.24	17.28	17.32		17.36	17.40	17.44
Open Circuit Voltage	Voc(V)	45.12	45.32	45.52		45.72	45.92	46.12
ShortCircuit Current	Isc(A)	18.18	18.22	18.26		18.30	18.34	18.40
Module Efficiency	(%)	20.44	20.60	20.76		20.92	21.09	21.25
Power Output Tolerance	(W)	0~+5W
*STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%.
Electrical Performance Parameters |NMOT
Model Type		635D(BPM) 66(210)	640D(BPM) 66(210)	645D(BPM) 66(210)		650D(BPM) 66(210)	655D(BPM) 66(210)	660D(BPM) 66(210
Nominal Max.Power	Pmax(W)	477	481	485		489	493	497
Max.Power Voltage	Vmp(V)	34.20	34.40	34.60		34.80	35.00	35.20
Max.PowerCurrent	Imp(A)	13.97	14.00	14.03		14.06	14.09	14.12
Open Circuit Voltage	Voc(V)	42.20	42.40	42.60		42.80	43.00	43.20
Short Circuit Current	Isc(A)	14.10	14.76	14.80		14.84	14.88	15.00
*NMOT:Irradiance800W/m²,Cell Temperature 20℃,Wind Speed 1m/s *Power measurement tolerance ±3%.
Structure Performance
Solar Cell Type		210mm Mono-crystalline (Half Cell)
Solar CellArrangement		132pcs(6×22)

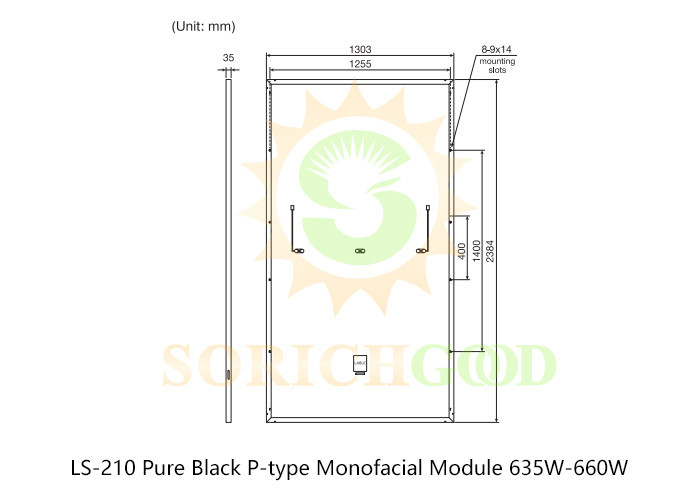

Module Dimension		2384×1303×35mm
Weight		33.8kg
Front Glass		3.2mm,highly transparent tempered glass with ant-reflective coating
Back Sheet		Black
Frame		Anodized Aluminum Alloy(Black)
Junction Box		IP68 rated
Cable		4mm²,portrait mm(-( ).landscape -+) Length can be customized
Diode Quantity		3 pcs
Front side/Rear side		5400pa/2400pa
Connector		MC4 Compatible
Per Pallet		31pcs
Per Container(40'HQ)		558pcs

Application

This module is especially suitable for Building Integrated Photovoltaics (BIPV) projects with high aesthetic requirements, large ground-mounted power stations, and industrial rooftop systems. With its high power output and aesthetically pleasing pure black design, it is also well-suited for residential installations, helping users achieve higher power production and a better return on investment.

Shipping Methods

Supports global air and sea shipping.
