530W Durable Monocrystalline Silicon Panels for Commercial Solar Installations
Product Description:
The 182 Pure Black P-type Bifacial Module represents a pinnacle of solar efficiency, offering a power range between 530W and 555W with a maximum efficiency of 21.48%. This module is designed with bifacial technology, enabling power generation from both sides, which increases overall energy yield and profitability. Its advanced structure, featuring 182mm mono-crystalline half cells arranged in a 144-cell configuration, ensures robust performance in various environmental conditions.
| Electrical Performance Parameters |STC | |||||||
| Model Type | 530D(HBD)535D(HBD) 540D(HBD) 545D(HBD)550D(HBD) 555D(HBD) 72(182) 72(182) 72(182) 72(182) 72(182) 72(182) |
||||||
| Nominal Max.Power Pmax(W | 530 535 540 545 550 555 | ||||||
| Max.Power Voltage Vmp(V | 41.29 41.45 41.61 41.77 41.93 42.08 | ||||||
| Max.Power Current Imp(A) | 12.84 12.91 12.98 13.05 13.12 13.19 | ||||||
| Open Circuit Voltage Voc(V) | 49.30 49.40 49.52 49.64 49.78 49.93 | ||||||
| Short CircuitCurrent Isc(A) | 13.73 13.80 13.87 13.94 14.01 14.07 | ||||||
| Module Efficiency (%) | 20.52 20.71 20.90 21.10 21.29 21.48 | ||||||
| Power Output Tolerance (W) | 0~+5W | ||||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. ·Power measurement tolerance ±3%. |
|||||||
| Electrical Performance Parameters |NMOT | |||||||
| Model Type | 530D(HBD) 72(182) |
535D(HBD) 72(182) |
540D(HBD) 72(182) |
545D(HBD) 72(182) |
550D(HBD) 72(182) |
555D(HBD) 72(182) |
|
| Nominal Max.Power | Pmax(W | 402 | 405 | 408 | 411 | 414 | 417 |
| Max.Power Voltage | Vmp(V) | 38.65 | 38.78 | 38.88 | 39.00 | 39.13 | 39.26 |
| Max.Power Current | Imp(A) | 10.38 | 10.42 | 10.47 | 10.52 | 10.57 | 10.63 |
| Open Circuit Voltage | Voc(V) | 47.00 | 47.18 | 47.37 | 47.56 | 47.75 | 47.94 |
| Short CircuitCurrent | Isc(A) | 11.10 | 11.15 | 11.21 | 11.26 | 11.31 | 11.36 |
| ·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
|||||||
| Structure Performance | |||||||
| Solar Cell Type | 182mm Mono-crystalline(Half Cell) | ||||||
| Solar Cell Arrangement | 144pcs(6×24) | ||||||

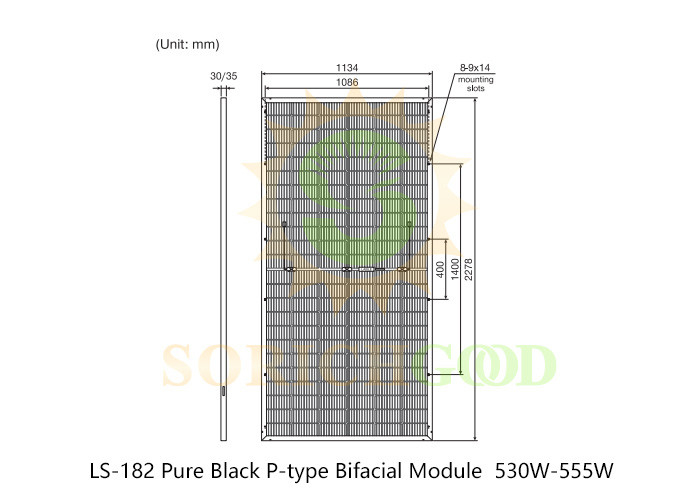

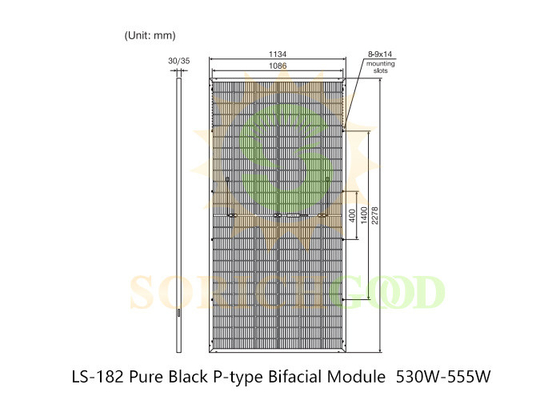

| Module Dimension | 2278×1134×35mm/30mm | ||||||
| Weight | 32.3kg(35mm)/31.2kg(30mm) | ||||||
| Front Glass | 2.0mm,highly transparent tempered glass with ant-reflective coating |
||||||
| Frame | Anodized Aluminum Alloy(Black) | ||||||
| Junction Box | IP68 rated | ||||||
| Cable | 4mm²,portrait 200mmlandscape¹4 +- Length can be customized |
||||||
| Diode Quantity | 3 pcs | ||||||
| Front side/Rearside | 5400pa/2400pa | ||||||
| Connector | MC4 Compatible | ||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | ||||||
| Per Container(40'HQ) | 620pcs(35mm)/720pcs(30mm) | ||||||
| Temperature Characteristics | |||||||
| Nominal Module Operating Temperature | 44±2℃ | ||||||
| Temperature Coefficient (Isc) | +0.048% | ||||||
| Temperature Coefficient (Voc) | -0.26% | ||||||
| Temperature Coefficient(Pmax) | -0.34% | ||||||
| Maximum Parameters | |||||||
| Working Temperature | -40~+85℃ | ||||||
| Maximum System Voltage | 1500V DC | ||||||
| Nominal Maximum Fuse Current | 25A | ||||||
Application:
Ideal for large-scale commercial installations and solar farms, the 182 Pure Black P-type Bifacial Module is perfect for projects that demand higher energy output from limited space. The bifacial technology is especially suited for installations where reflected sunlight can be harnessed from surfaces like white rooftops, sand, or snow, further boosting power generation efficiency.
