The 182 Pure Black P-type Monofacial Module is a premium solar panel designed for high-efficiency energy production. It features a power range of 485W to 495W with a maximum efficiency of 20.85%. The module is built with 182mm monocrystalline half cells, which provide superior performance even in low-light conditions. The panel's structure includes a highly transparent 3.2mm tempered glass with anti-reflective coating, ensuring maximum sunlight absorption. The anodized aluminum alloy frame, coupled with a black back sheet, not only enhances the panel's aesthetic appeal but also provides robust protection against environmental elements. The IP68 rated junction box guarantees long-term reliability, even in harsh weather conditions.
| Electrical Performance Parameters |STC | ||||||||
| ModelType | 485D(BPM) 66(182 |
490D(BPM) 66(182) |
495D(BPM) 66/(182) |
|||||
| Nominal Max.Power | Pmax(W) | 485 | 490 | 495 | ||||
| Max.Power Voltage | Vmp(V) | 37.62 | 37.82 | 38.02 | ||||
| Max.Power Current | Imp(A) | 12.90 | 12.96 | 13.02 | ||||
| Open Circuit Voltage | Voc(V) | 45.58 | 45.78 | 45.98 | ||||
| Short Circuit Current | lsc(A) | 13.57 | 13.62 | 13.67 | ||||
| Module Eficiency | (%) | 20.42 | 20.64 | 20.85 | ||||
| PowerOutput Tolerance | (W) | 0~+5W | ||||||
| *STC:Irradiance 1000W/m²,CeI Temperature 25℃,Air Mass AM1.5. *Power measurement tolerance ±3%. |
||||||||
| Electrical Performance Parameters |NMOT | ||||||||
| Model Type | 485D(BPM) 66(182) |
490D(BPM) 66(182) |
495D(BPM) 66(182) |
|||||
| Nominal Max.Power | Pmax(W) | 365 | 370 | 375 | ||||
| Max.Power Voltage | Vmp(V) | 34.64 | 34.84 | 35.04 | ||||
| Max.PowerCurrent | Imp(A) | 10.54 | 10.62 | 10.71 | ||||
| Open Circuit Voltage | Voc(V) | 42.93 | 42.98 | 43.03 | ||||
| Short Circuit Current | Isc(A) | 10.72 | 10.92 | 11.12 | ||||
| ·NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%. |
||||||||
| Structure Performance | |||||||
| Solar Cell Type | 182mmMono-crystalline (Half Cell) | ||||||
| SolarCellArrangement | 132pcs(6×22) | ||||||

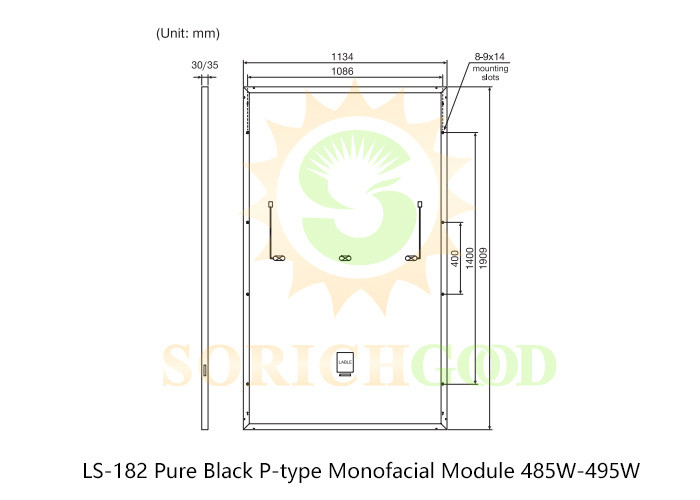

| Module Dimension | 2094×1134×35mm/30mm | ||||||
| Weight | 25.1kg(35mm)/23.8kg(30mm) | ||||||
| Front Glass | 3.2mm,highly transparent tempered glass with antreflective coating |
||||||
| Back Sheet | Black | ||||||
| Frame | Anodized Aluminum Alloy (Black) | ||||||
| Junction Box | IP68 rated | ||||||
| Cable | 4mm²,portrait 28mm),landscape 1400mm(+ 1400mm (-) Length can be customized |
||||||
| Diode Quantity | 3 pcs | ||||||
| Front side/Rear side | 5400pa/2400pa | ||||||
| Connector | MC4 Compatible | ||||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | ||||||
| PerContainer(40'HQ) | 682pcs(35mm)/792pcs(30mm) | ||||||
| Temperature Characteristics | |||||||
| Nominal Module OperatingTemperature | 44±2℃ | ||||||
| Temperature Coefficient (lsc) | +0.048% | ||||||
| Temperature Coefficient(Voc) | -0.26% | ||||||
| Temperature Coefficient(Pmax) | -0.34% | ||||||
| Maximum Parameters | |||||||
| Working Temperature | -40~+85℃ | ||||||
| Maximum System Voltage | 1500V DC | ||||||
| Nominal Maximum Fuse Current | 25A | ||||||
This module is ideal for residential and commercial rooftop installations where aesthetics and efficiency are paramount. The black-on-black design seamlessly blends with modern architecture, making it a preferred choice for installations in urban environments. Additionally, its high efficiency and reliable performance make it suitable for large-scale solar farms where maximizing energy output is critical.
