The 182 Pure Black P-type Monofacial Module is designed for high-efficiency energy generation with a sleek, all-black aesthetic that complements both residential and commercial installations. With a power range of 440W to 450W and a maximum efficiency of 20.79%, this module is ideal for applications where visual appeal is as important as performance. The module features a robust anodized aluminum alloy frame, ensuring durability in various environmental conditions. Its half-cell structure enhances energy capture, making it a reliable choice for optimized power output even under partial shading.
| Electrical Performance Parameters |STC | ||||||
| Model Type | 440D(BPM) 60(182) |
445D(BPM) 60(182) |
450D(BPM) 60(182) |
|||
| Nominal Max.Power | Pmax(W) | 440 | 445 | 450 | ||
| Max.Power Voltage | Vmp(V) | 34.22 | 34.42 | 34.62 | ||
| Max.Power Current | Imp(A) | 12.86 | 12.93 | 13.00 | ||
| Open Circuit Voltage | Voc(V) | 40.98 | 41.18 | 41.38 | ||
| Short Circuit Current | bo(A) | 13.60 | 13.66 | 13.72 | ||
| Module Efficiency | (%) | 20.33 | 20.56 | 20.79 | ||
| PowerOutput Tolerance | (W) | 0~+5W | ||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. ·Power measurement tolerance ±3%. |
||||||
| Electrical Performance Parameters |NMOT | ||||||
| Model Type | 440D(BPM) 60(182) |
445D(BPM) 60(182) |
450D(BPM) 60(182) |
|||
| Nominal Max.Power | Pmax(W) | 320 | 325 | 330 | ||
| Max.Power Voltage | Vmp(V) | 31.24 | 31.44 | 31.64 | ||
| Max.Power Current | Imp(A) | 10.25 | 10.34 | 10.43 | ||
| Open Circuit Voltage | Voc(V) | 38.48 | 38.68 | 38.88 | ||
| Short Circuit Current | sc(A) | 10.77 | 10.97 | 11.17 | ||
| *NMOT:Irradiance800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. *Power measurement tolerance ±3%. |
||||||
| Structure Performance | ||||||
| Solar Cell Type | 182mm Mono-crystalline (Half Cell) | |||||
| Solar Cell Arrangement | 120pcs(6×20) | |||||

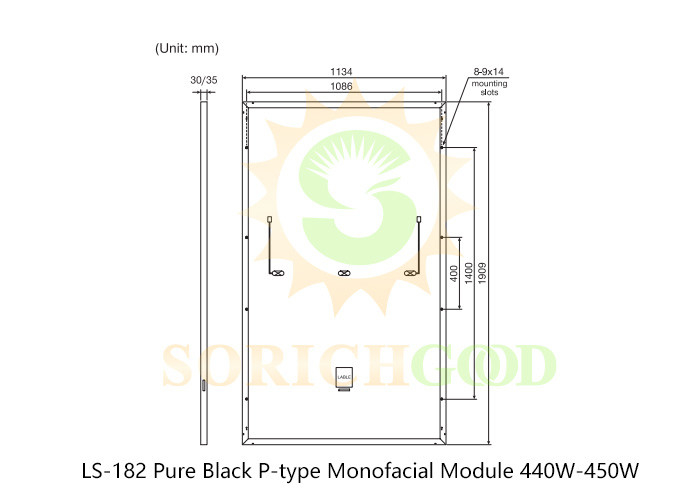

| Module Dimension | 1909×1134×35mm/30mm | |||||
| Weight | 23.2kg(35mm)/22.1kg(30mm) | |||||
| Front Glass | 3.2mm,highly transparent tempered glass with anti-reflective coating |
|||||
| Back Sheet | Black | |||||
| Frame | Anodized Aluminum Alloy (Black) | |||||
| Junction Box | IP68 rated | |||||
| Cable | 4mm²,portrait 200mm(,landscape | 1400mm(+) 1400mm (-) |
||||
| Length can be customized | ||||||
| Diode Quantity | 3 pcs | |||||
| Front side/Rear side | 5400pa/2400pa | |||||
| Connector | MC4 Compatible | |||||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | |||||
| Per Container(40'HQ) | 744pcs(35mm)/864pcs(30mm) | |||||
| Temperature Characteristics | ||||||
| Nominal Module Operating Temperature | 44±2℃ | |||||
| Temperature Coefficient(Isc) | +0.048% | |||||
| Temperature Coefficient (Voc) | -0.26% | |||||
| Temperature Coefficient(Pmax) | -0.34% | |||||
| Maximum Parameters | ||||||
| Working Temperature | -40~+85℃ | |||||
| Maximum SystemVoltage | 1500V DC | |||||
| Nominal Maximum Fuse Current | 25A | |||||
This module is perfect for residential rooftops, commercial buildings, and urban environments where both high energy yield and aesthetic integration are required. The all-black design allows it to blend seamlessly with modern architectural styles, making it an excellent choice for installations where appearance matters. Additionally, its enhanced temperature coefficient and high power output tolerance ensure reliable performance in a wide range of climates.
