590W Advanced N-TopCon Technology Monocrystalline Silicon Panels for Enhanced Performance
Product Description
The 210R N-TopCon Bifacial Module is engineered to deliver exceptional performance with a power range of 590W to 625W, achieving a maximum efficiency of 23.14%. This module features 132 pieces of 210R N-TopCon Mono Half Cells, arranged in a 6x22 configuration, ensuring optimal energy capture and conversion. The module's structure includes a robust anodized aluminum alloy frame, a 2.0mm highly transparent tempered glass with anti-reflective coating, and an IP68 rated junction box for enhanced durability and reliability in various environmental conditions. The bifacial design allows for increased energy generation from both sides of the panel, making it ideal for applications where maximum efficiency is essential.
| Electrical Performance Parameters |STC | |||||
| Model Type | 590C(HBD)595C(HBD)600C(HBD)605C(HBD)610C(HBD)615C(HBD)620C(HBD)625C(HBD) 66(210R)66(210R)66(210R)66(210R) 66(210R)66(210R) 66(210R)66(210R) |
||||
| Nominal Max.Power Pmax(W) | 590 595 600 605 610 615 620 625 | ||||
| Max.Power Voltage Vmp(V) | 40.14 40.26 40.38 40.51 40.64 40.76 40.88 40.99 | ||||
| Max.Power Current Imp(A) | 14.70 14.78 14.86 14.94 15.01 15.09 15.17 15.25 | ||||
| Open Circuit Voltage Voc(V) | 48.15 48.29 48.42 48.55 48.69 48.82 48.95 49.08 | ||||
| Short Circuit Current Isc(A) | 15.54 15.63 15.71 15.80 15.89 15.98 16.06 16.15 | ||||
| Module Efficiency (%) | 21.84 22.03 22.21 22.40 22.58 22.77 22.95 23.14 | ||||
| PowerOutputTolerance (W) | 0~+5W | ||||
| *STC:Irradiance 1000W/m²,Cell Temperature 25℃,Air Mass AM1.5. *Power measurementtolerance ±3%. |
|||||
| Electrical Performance Parameters |NMOT | |||||
| Model Type | 590C(HBD)595C(HBD)600C(HBD)605C(HBD)610C(HBD)615C(HBD)620C(HBD)625C(HBD) 66(210R)66(210B) 66(210R) 66(210R) 66(210R) 66(210R) 66(210R)66(210R) |
||||
| Nominal Max.Power Pmax(W) | 444 448 452 456 460 464 468 472 | ||||
| Max.Power Voltage Vmp(V) | 37.47 37.62 37.77 37.94 38.10 38.26 38.43 38.59 | ||||
| Max.Power Current Imp(A) | 11.85 11.91 11.97 12.02 12.08 12.13 12.18 12.24 | ||||
| Open Circuit Voltage Voc(V) | 45.69 45.82 45.95 46.07 46.20 46.33 46.46 46.59 | ||||
| Short Circuit Current Isc(A) | 12.54 12.60 12.68 12.75 12.82 12.89 12.96 13.03 | ||||
| ·NMOT:Irradiance 800W/m²,CellTemperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%. |
|||||
| Structure Performance | ||||
| Solar Cell Type | 210R N-TopCon Mono Cell (Half Cell) | |||
| Solar Cell Arrangement | 132pcs(6x22) | |||

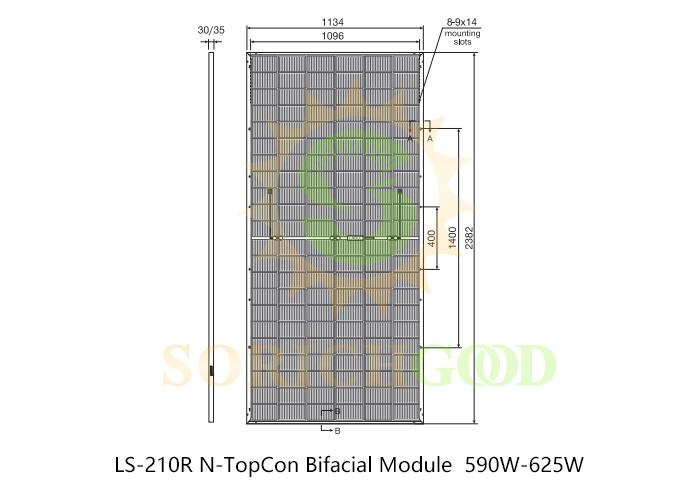

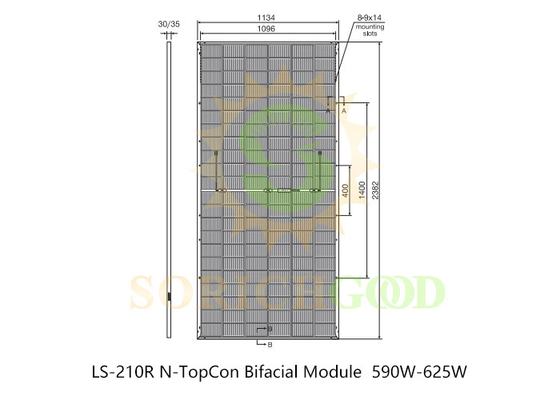

| Module Dimension | 2382×1134×35mm/30mm | |||
| Weight | 35.2kg(35mm)/33.4kg(30mm) | |||
| Front Glass | 2.0mm,highly transparent tempered glass with anti-reflective coating |
|||
| Frame | Anodized Aluminum Alloy | |||
| Junction Box | IP68 rated | |||
| Cable | 4mm²,portrait | 400mm(+) 200mm(-) |
.landscape | 1400mm(+) 1400mm(-) |
| Length can be customized | ||||
| Diode Quantity | 3 pcs | |||
| Front side/Rear side | 5400pa/2400pa | |||
| Connector | MC4 Compatible | |||
| Per Pallet | 31pcs(35mm)/36pcs(30mm) | |||
| Per Container(40'HQ) | 558pcs(35mm)/648pcs(30mm) | |||
| Temperature Characteristics | ||||
| Nominal Module Operating Temperature | 44±2℃ | |||
| Temperature Coefficient(Isc) | +0.043% | |||
| Temperature Coefficient (Voc) | -0.25% | |||
| Temperature Coefficient (Pmax) | -0.30% | |||
| Maximum Parameters | ||||
| Working Temperature | -40~+85℃ | |||
| Maximum System Voltage | 1500V DC | |||
| Nominal Maximum Fuse Current | 35A | |||
Application
This high-efficiency bifacial module is perfect for large-scale solar power plants, commercial rooftop installations, and projects where space optimization and maximum energy output are critical. Its bifacial nature makes it particularly suitable for ground-mounted systems where reflected sunlight can be captured from the rear side, thereby boosting overall energy yield. With its advanced cell technology and robust construction, this module ensures long-term performance and reliability in diverse climates, including areas with high temperatures and heavy snowfall.
