6000W Hybrid Inverters For Peak Power Demand Management

6000W Hybrid Inverters For Peak Power Demand Management

  • Highlight

    6000W Hybrid Inverters

    ,

    48V Hybrid Inverters

    ,

    120A hybrid inverter

  • Max PV Input Power
    6000W
  • Battery Voltage
    48VDC
  • Surge Capacity
    8000W
  • MPPT Range
    120VDC-450VDC
  • Max Solar Charge Current
    120A
  • Efficiency
    ≥95%
  • Place of Origin
    China
  • Brand Name
    TP
  • Certification
    CE
  • Model Number
    SIP1.5
  • Document
  • Minimum Order Quantity
    6 units
  • Price
    consult prices online
  • Packaging Details
    consult online
  • Payment Terms
    T/T

6000W Hybrid Inverters For Peak Power Demand Management

Durable Hybrid Inverters for Peak Power Demand Management

6000W Hybrid Inverters For Peak Power Demand Management 0

Product Description:

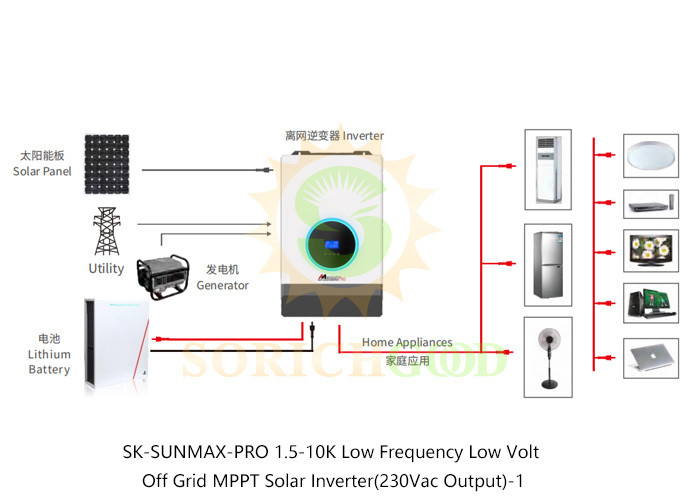

The SUNMAX-PRO Series hybrid inverter is a high-performance power management solution designed to work seamlessly with or without batteries. It offers reliable performance for both on-grid and off-grid applications, making it ideal for home and commercial use. Featuring a built-in MPPT solar charge controller, this inverter supports parallel operation of up to 9 units for 5KVA systems and 6 units for 10KVA systems. It includes advanced features like real-time monitoring via USB, RS232, and Wi-Fi, as well as a user-friendly LCD with RGB display. The SUNMAX-PRO inverter ensures efficient energy conversion, low-frequency transformer technology for enhanced durability, and automatic battery activation to optimize lithium battery performance.

TECHNICAL PARAMETER SUNMAX-PRO Series
MODEL 1.5KVA
12V
2.5KVA
24V
3.5KVA
24V
5.5KVA
48V
7.5KVA
48V
5KVA48V
Parallel
10KVA 48V
Parallel
LINE MODE SPECIFICATIONS
Input Voltage Waveform Sinusoidal (Utility or generator)
Nominal Input Voltage 230Vac
AC Input Range 170Vac-280V (Computer);90Vac-280Vac (Home Appliances)
Nominal Input Frequency 50Hz/60Hz(Auto detection)
Efficiency(Line Mode) >95%(Rated R load,battery full charged)
TransferTime 10ms typical (UPS);20ms typical(Appliances)
INVERTERMODE SPECIFICATIONS
Rated Output Power 1000W 2000W 3000W 5000W 6000W 5000W 8000W
Output Voltage Waveform Pure sine wave
Output Voltage Regulation 230Vac±5%
Output Frequeency 50Hz/60Hz
Peak Efficiency 90%
Overoad Protection 5s@=150%load;10s@105%~150%load
SurgeCapacity 2'rated power for 5seconds
Nominal Battery Input Voltage 12.0Vdc*N
High DC RecoveryVoltage 16.0Vdc*N
High DCCut-off Voltage 16.5Vdc*N
No Load Power Consumption <15W <25W 50W
CHARGE MODE SPECIFICATIONS
Utility Charging Mode
Charging Algorithm 3 steps
AC Charging Current(Max) 15A 40A 80A
Battery Voltage 14.1Vdc*N
Floating Charging Voltage 13.5Vdc*N



MPPT SOLAR CHARGING MADE
Charging Current 60A 60A 60A 100A 100A 60A 120A
System DC Voltage 12Vdc*N
Operating Voltage Range 15V/30V-100V 30V/60V-150V 60V-190V
Max.PV Array Open Circuit Voltage 100Vdc 250Vdc
DCVoltage Accuracy ±0.3%
Max Charging Current (AC+Solar) 80A 120A 80A 200A
Max.Solar Input Power (W) 900W 1800W 3600W 6000W 6000W 3600W 7200W
BMS Communication 5KSupport Lithium Battery BMS Communication
ParallelOption 5KParallel 9 Units,10K Parallel6 Units
Compatible Lithium Battery 1.5-10K Support Compatible and Active Lithium Battery
GENERAL SPECIFICATIONGS
Safety Certification CE
Operating Temperature Range 0℃-50℃
Storage Temperature -15℃-60℃
Humidity 5%to 95%Relative Humidity(Non-condensing)
Product Dimension(D*W*H),mm L520*W280*H150 L560*W345*H150 L600*W450*H220
Packing Size(mm) L620*W360*H250 L660*W430*H250 L700*W530*H350
Net Weight,kg 32 42 55
G.W.kg 35 45 62

Application:

  • Residential solar energy systems
  • Small commercial solar setups
  • Off-grid solar energy systems
  • Hybrid energy management systems for peak power demand management



Shipping Methods



Supports global air and sea shipping.
