75KW–200KW High-Performance Hybrid Inverters for Industrial Solar Energy
Product Description:

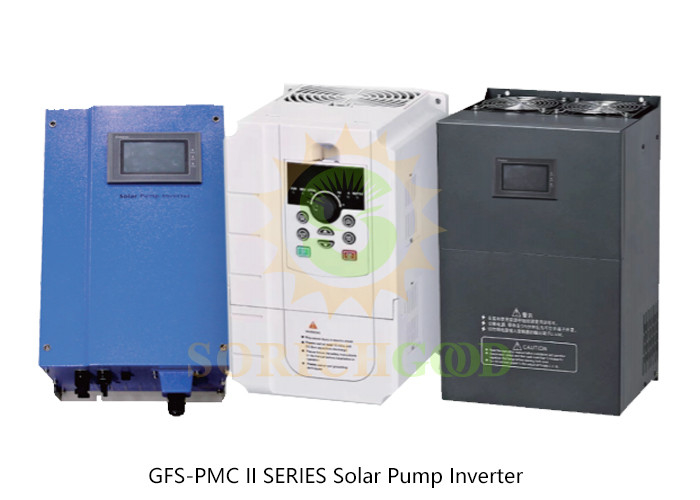

This is a high-efficiency solar inverter system equipped with advanced MPPT technology, specifically designed for maximizing the utilization of PV arrays. The modular system offers fully digital control, automatic operation, and data storage capabilities, making it ideal for high-demand applications. This product supports three-phase asynchronous motors and features an LCD/LED display for easy monitoring of operational parameters. With built-in lightning, overvoltage, and overload protection, it ensures safe and reliable performance under various conditions.
| Rated Power | 2.2KW | 5.5KW | 7.5KW | 11KW |
| Rated Voltage | 380-440VAC | 380-440VAC | 380-440VAC | 380-440VAC |
| Max.PV Input Power | 3KW | 8KW | 10KW | 15KW |
| Max.DC Input Voltage | 800VDC | 800VDC | 800VDC | 800VDC |
| Recommended MPPT Voltage | 500-600VDC | 500-600VDC | 500-600VDC | 500-600VDC |
| Rated Output Current | 5A | 14A | 17A | 25A |
| Frequency | 0-50/60Hz 18.5KW |
0-50/60Hz 22KW |
0-50/60Hz 30KW |
0-50/60Hz |
| Rated Power | 37KW | |||
| RatedVoltage | 380-440VAC | 380-440VAC | 380-440VAC | 380-440VAC |
| Max.PV Input Power | 25KW | 31KW | 42KW | 52KW |
| Max.DC Input Voltage | 800VDC | 800VDC | 800VDC | 800VDC |
| Recommended MPPT Voltage | 500-600VDC | 500-600VDC | 500-600VDC | 500-600VDC |
| Rated Output Current | 38A | 45A | 60A | 75A |
| Frequency | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz |
| Rated Power 75KW 110KW 160KW 200KW | ||||
| Rated Voltage | 380-440VAC | 380-440VAC | 380-440VAC | 380-440VAC |
| Max.PV Input Power | 105KW | 134KW | 224KW | 280KW |
| Max.DC Input Voltage | 800VDC | 800VDC | 800VDC | 800VDC |
| Recommended MPPT Voltage | 500-600VDC | 500-600VDC | 500-600VDC | 500-600VDC |
| Rated Output Current | 150A | 215A | 305A | 380A |
| Frequency | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz |
| Note:can be customized according to customer requirements | ||||
Application:

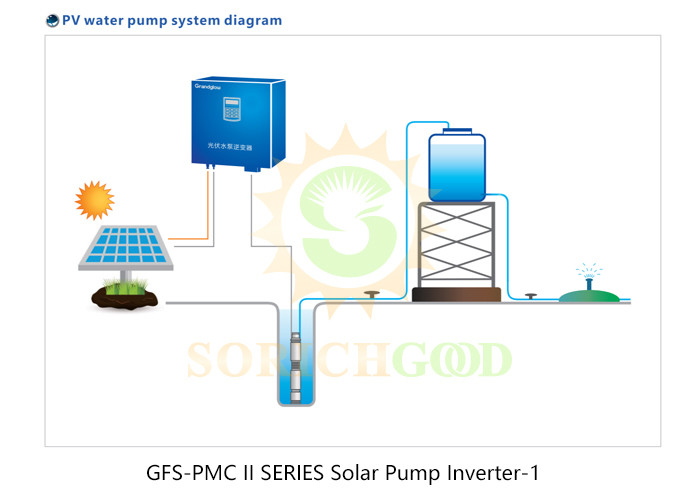

This product is suitable for large-scale industrial and commercial solar energy systems requiring high power input and consistent energy output. It is commonly used in solar pumping systems, agricultural irrigation projects, and other applications that benefit from the high reliability of asynchronous motor support and the protection features of the system. This inverter system is optimized for environments with harsh weather conditions, providing uninterrupted operation.
