Multi-Function Hybrid Inverters for Essential Appliances and Continuous Operation
Product Description:
This is a multi-function inverter/charger that combines the functionalities of an inverter, solar charger, and AC charger into a portable unit. It is designed to provide uninterrupted power support and features a detachable LCD control module for user-configurable operations. This includes setting battery charging current, prioritizing AC/solar input, and selecting acceptable input voltage for various applications. Additionally, it supports mobile monitoring via Bluetooth and provides enhanced serviceability with field-replaceable parts.
| Rated Power 5000VA/5000W | ||

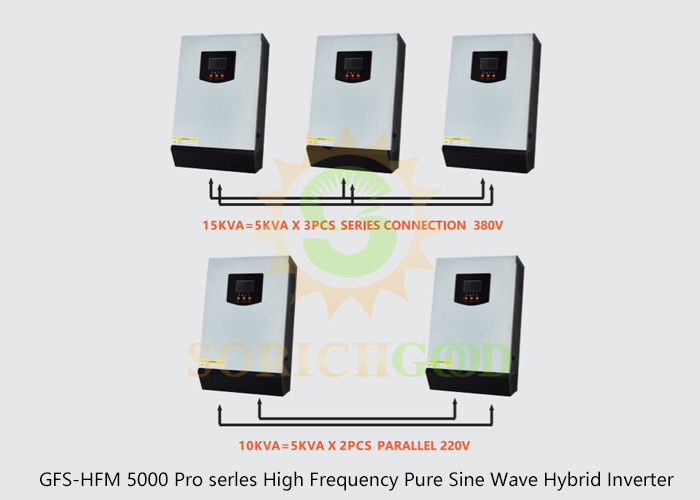

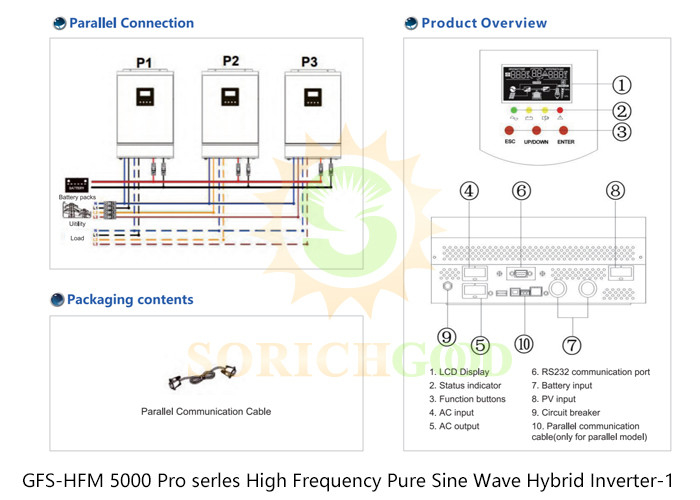

| Parallel Capability | 9 units | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers); 90-280 VAC(For Home Appliances) |
|
| Frequency | 50 Hz/60 Hz(Auto sensing) | |
| 0UTPUT | ||
| AC Voltage Regulation (Batt.Mode) |
230VAC±5% | |
| Peak Power | 10000VA | |
| Efficiency (Peak) | 93% | |
| Transfer Time | 10 ms(For Personal Computers); 20 ms(ForHomeAppliances) |
|
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 48VDC | |
| Floating Charge Voltage | 54VDC | |
| Overcharge Protection | 60VDC | |
| SOLAR CHARGER &AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage |
500VDC | |
| MPPT Range @Operating Voltage | 120-430VDC | |
| Maximum PV Array Power | 6000W | |
| Maximum Solar Charge Current | 80A | |
| Maximum AC Charge Current | 60A | |
| Maximum Charge Current | 100A | |
| PHYSICAL | ||
| Dimension,,D*W*H(mm) | 125*300*470 | |
| Net weight(kg) | 7.6 | |
| Optional function | BMS/WIFI/4G | |
| ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃-50℃ | |
| Storage Temperature | -15℃-60℃ | |
| Note:can be customized according to customer requirements | ||
Application:
This product is ideal for home or business energy storage systems where reliable power backup is necessary. It ensures continuous operation for essential appliances, particularly during power outages, and supports grid or photovoltaic (PV) power input. It is suitable for off-grid applications and environments with fluctuating power supply, offering seamless transition between grid, battery, and solar power.
