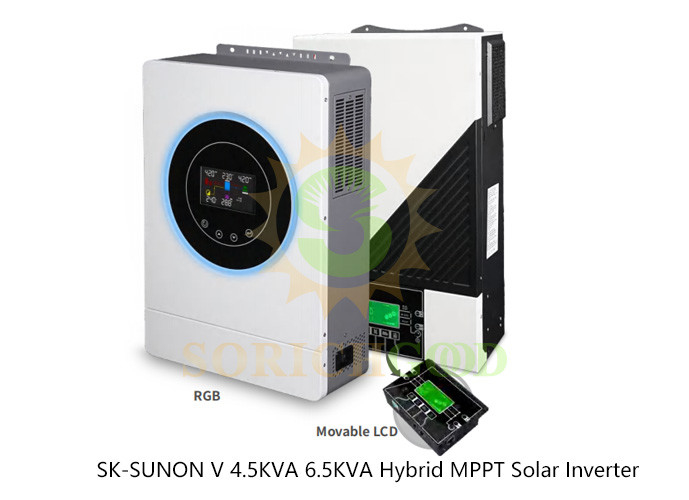

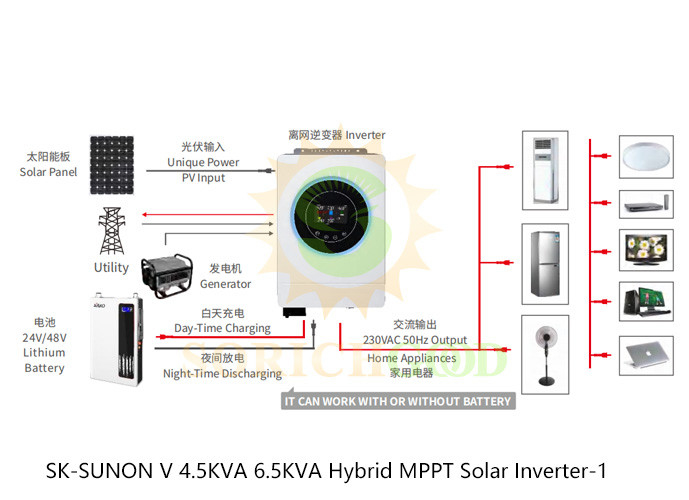

The SUNON V series hybrid solar inverter offers a highly efficient energy solution with flexible power management options. With integrated MPPT solar charge controller and high PV input voltage range (90-450VDC), this inverter allows smooth grid-feeding or off-grid operation. The unit is equipped with a built-in lithium battery activation system and operates efficiently with or without a battery, making it suitable for both residential and commercial use. Dual AC output, battery-independent design, and enhanced charging power ensure versatile performance. It also features built-in anti-dust protection and remote monitoring capabilities via WiFi, making it ideal for use in harsh environments.
| MODEL | SUNONV4.5KVA/24V | SUNONV6.5KVA/48V |
| Rated Power | 4500VA/4200W | 6500VA/6200W |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers);90-280 VAC(For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | |
| 0UTPUT | ||
| AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
| Surge Power | 8400VA | 12400VA |
| Efficiency (Peak) | 90%～93% | |
| Transfer Time | 10ms(For Personal Computers);20ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| SOLAR CHARGER&AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PVArray Power | 5000W | 6000W |
| Max.Input Current | 27A | 27A |
| MPPT Range @Operating Voltage | 60-450V | 60-450V |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maxmum Solar Charge Current | 120 A | 120 A |
| Maximum ACCharge Current | 100 A | 100 A |
| Maximum Charge Current | 120 A | 120 A |
| PHYSICAL | ||
| Packing Dimension,DXWXH(mm) | 583mm*380mm*214mm 583mm*380mm*214mm | |
| Net Weight(kgs) | 9.6 | 10.4 |
| Communication Interface | USB/RS232/RS485(BMS)/Local WiFi/Dry-contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |
| Operating Temperature | -10°℃ to 50℃ | |
| Storage Temperature | -15℃to60℃ | |
