Pure Sine Wave Output SUNON-ULTRA Hybrid Inverters for On-Grid and Off-Grid Applications
Product Description:

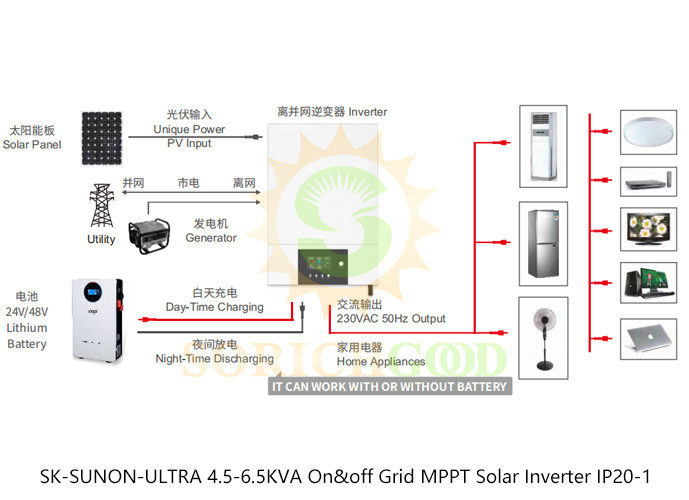

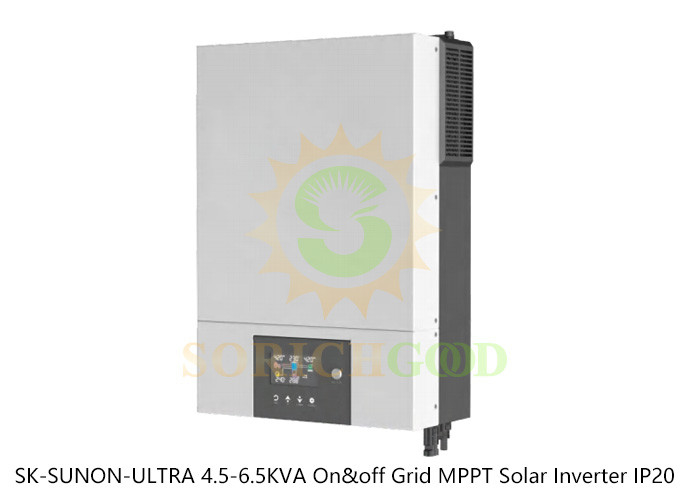

The SUNON-ULTRA 4.5KVA and SUNON-ULTRA 6.5KVA hybrid solar inverters offer a highly efficient solution for both off-grid and on-grid applications. Equipped with MPPT solar charge controllers and advanced features like automatic lithium battery activation, these inverters support a wide range of PV input voltages (90V-450VDC) and provide enhanced charging power. Both models feature a pure sine wave output and the flexibility to operate with or without a battery, making them ideal for residential and commercial energy storage systems. These inverters also offer grid-feeding capabilities and dual AC outputs, making them perfect for hybrid energy setups. With smart battery charging design, a user-friendly LCD interface, and integrated WiFi & GPRS options, they ensure ease of use and monitoring. The inverters are designed to deliver optimal performance even in harsh environments, thanks to their built-in dust-resistant and robust construction.
| DUAL LOADS AC OUTPUT | ||
| Full Load | 4200W | 6200W |
| Maximum Main Load | 4200W | 6200W |
| Main Load Cut Off Voltage | 22VCD | 44VCD |
| Main Load Retum Voltage | 27VCD | 54VCD |
| SOLAR CHARGER &AC CHARGER | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 6200W | 6500W |
| Max.input Current | 27A | 27A |
| MPPT Range @Operating Voltage | 90~450VDC | 90~450VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum Solar Charge Current | 140A | 120A |
| MaximumAC Charge Curent | 100A | 100A |
| Maximum Charge Curent | 140A | 120A |
| PHYSICAL | ||
| Packing Dimension,DXWXH(mm) | 543*394*204 | 543*394*204 |
| Net Weight (kgs) | 9.8 | 10.5 |
| Communication Interface | USB/RS232/WIFVGPRS | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non-condensing) | |
| Operating Temperature | -10℃ to 50℃ | |
| Storage Temperature | -15℃ to 60℃ | |
