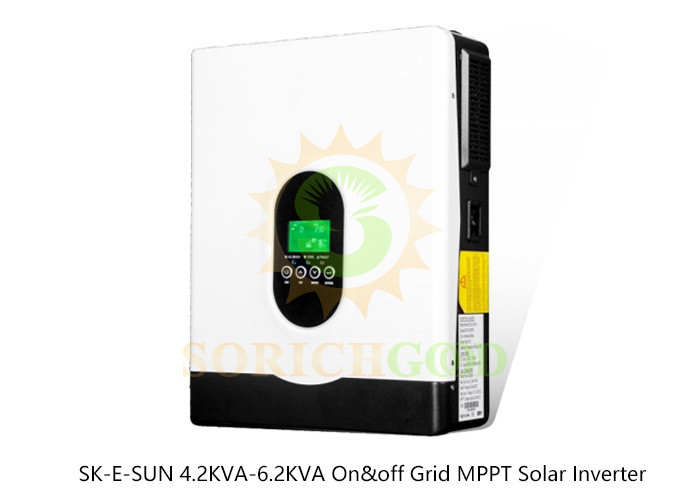

The E-SUN Hybrid Solar Inverter is a reliable power management solution that efficiently integrates solar energy with traditional grid power. It features pure sine wave output, ensuring stable and clean energy delivery for both on-grid and off-grid applications. With dual AC outputs and support for hybrid operation, it provides flexible energy management to meet diverse energy needs. Built-in MPPT technology maximizes solar energy utilization, while a robust anti-dust kit makes it ideal for harsh environments. Wi-Fi and GPRS compatibility offer remote monitoring and control, adding convenience for users.
| BEST SOLAR PANEL CONFIGUTATION | ||
| Max generated from solar charger | 5000W | 6000W |
| Best Panelconfiguration | 540Wp/39V*9pcs (4860Wp) 9S Strings and 1S Parallel |
410Wp/39V*14pcs (5740Wp) 7S Strings and 2S Parallel |
| PHYSICAL | ||
| Product Dimension | L453mm*W312mm*H120mm | |
| Net Weight | 7.0kg | 8.2kg |
| Package Dimension | L550mm*W393mm*H196mm | |
| Gross Weight | 8.5kg | 9.7kg |
| OPERATING ENVIRONMENT | ||
| Humidity | 5%to95%Relative Humidity(Non-condensing) | |
| Operation Temperature | 0℃-50℃ | |
| TECHNICAL PARAMETER | ||
| Model | E-SUN 4.2KVA | E-SUN6.2KVA |
| PF | 0.9 | 0.9 |
| AC INPUT | ||
| Voltage | 230VAC | |
| SelectableVoltageRange | 170-280VAC (UPS Mode),90-280VAC(APP Mode) | |
| Frequnecy Range | 50Hz/60Hz(Auto adaptive) | |
| ACOUTPUT | ||
| AC Voltage Regulation (Batt Model) | 230VAC±5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency(Peak) | 93.5% | 94% |
| Transfer Time | Computers(UPS Mode)10ms,Appliance(APP Mode)10ms | |
| Wave form | Pure sine wave | |
| BATTERY | ||
| Battery voltage | 24.0VDC | 48.0VDC |
| Floating Charge Voltage(Adjustable) | 28.0VDC | 56.0VDC |
| Constant Charge Voltage(Adjustable) | 28.8VDC | 57.6VDC |
| Overcharge Protection | 30.0VDC | 60.0VDC |
| MPPT SOLAR CHARGER&ACCHARGER | ||
| Maximum PVArray Power | 5000W | 6000W |
| MPPTRange Operaton Vol | 40V-450VDC | 120V~450VDC |
| Maximum PVArray Open Circuit Vol | 500VDC | 500DC |
| Standby Power Consumption | 33W | 67W |
| Maxmum Solar Charge Current | MPPT 100A | MPPT 100A |
| Maxmum Trace Efficiency | 99.5% | |
| Maxmum AC Charge Current | 100A | 100A |
| Maxmum Charge Current | 100A | 100A |

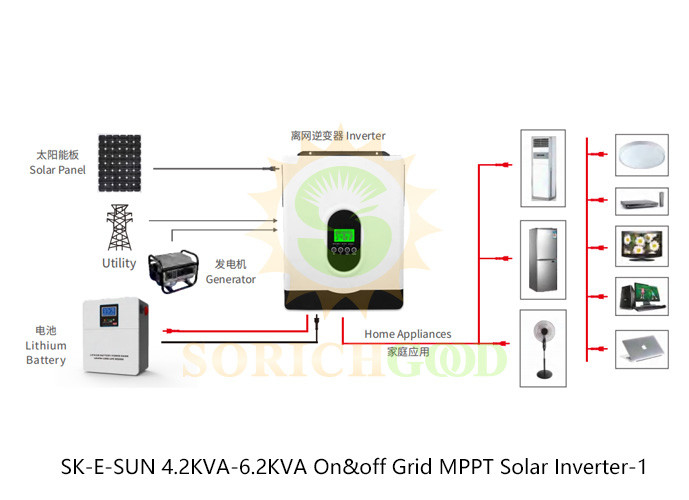

This hybrid inverter is perfect for residential and small commercial solar energy systems that require a stable, reliable power supply. It can be used for homes, small businesses, or backup power solutions. Its capability to run without batteries and flexibility to integrate with the grid make it an ideal choice for areas with intermittent power supply or those looking to reduce electricity costs by utilizing solar power efficiently.
