Powerful and Versatile Hybrid Inverters for Residential Commercial and Industrial
Product Description:

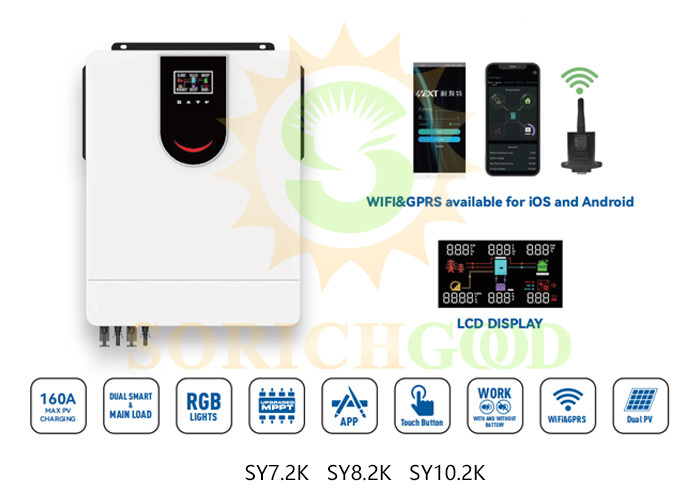

This new pure sine wave solar inverter offers seamless integration of on-grid and off-grid solar systems, providing high efficiency with a power factor of 1.0. Equipped with 160A MPPT solar charge controllers, this inverter supports high PV input voltage ranges from 90VDC to 500VDC. It also features a dual output system, smart battery charge optimization, and built-in dustproof anti-dust kits, making it ideal for harsh environments. Additionally, it includes touch-button controls and advanced monitoring via Wi-Fi/GPRS, available for iOS and Android devices. The inverter can function both with and without a battery, offering versatile power management for various applications.
| INVERTER | ||||||
| MODEL | SY7.2K | SY8.2K | SY10.2K | |||
| Phase | 1-phase | |||||
| Maximum PV Input Power | 8200W | 8200W | 5400W+5400W | 10200W | 5400W+5400W | |
| Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | |||
| Nomina DC Voltage/Maximum DC Voltage | 140A | 160A | 160A | |||
| GRID-TIE OPERATION | ||||||
| PVINPUT(DC) | ||||||
| Nomina DC Voltage/Maximum DC Voltage | 360/500VDC | |||||
| Start-up Voltage/lnitial FeedingVoltage | 90VDC/120VDC | |||||
| MPPT Voltage Range | 90~450VDC | |||||
| Maximum Input Current | 1/23A | 1/23A | 2/18A | 1/23A | 2/18A | |
| GRID OUTPUT(AC) | ||||||
| Nominal Output Voltage | 220/230/240VAC | |||||
| Output Voltage Range | 195~253VAC | |||||
| Nominal Output Current | 31.3A | 35.6A | 44.3A | |||
| Power Factor | >0.99 | |||||
| EFFICIENCY | ||||||
| MaximumConversion Eficiency(DC/AC) | 98% | |||||
| TWO LOAD OUTPUT POWER | ||||||
| Full Load | 7200W | 8200W | 10200W | |||
| Maximum Main Load | 7200W | 8200W | 10200W | |||
| Maximum Second Load(battery mode) | 2400W | 2733W | 3400W | |||
| Maximum Load Cut Off Voltage | 52VDC | 52VDC | 52VDC | |||
| Maximum Load Return Voltage | 54VDC | 54VDC | 54VDC | |||
| OFF-GRID OPERATION | ||||||
| AC INPUT | ||||||
| AC Start-up Voltage /Auto Restart Voltage | 120-140VAC/180VAC | |||||
| Acceptable Input Voltage Range | 90-280VACor 170-280VAC | |||||
| Frequency Range | 49~51±1Hz | |||||
| Maximum AClnput Current | 40A | 40A | 50A | |||
| PVINPUT(DC) | ||||||
| Nominal DC Voltage/Maximum DCVoltage | 360/500VDC | |||||
| MPPT Voltage Range | 90~450VDC | |||||
| Maximum Input Current | 1/23A | 1/23A | 2/18A | 1/23A | 2/18 | |
| BATTERY MODE OUTPUT(AC) | ||||||
| Nominal Output Voltage | 220/230/240VAC | |||||
| OutputWaveform | Pure sine wave | |||||
| Eficiency(DCto AC) | 94% | |||||
| BATTERY&CHARGER | ||||||
| Nominal DC Voltage | 48VDC | |||||
| Maximum Solar Charging Current | 140A | 160A | 160A | |||
| Maximum AC Charging Current | 120A | 140A | 140A | |||
| Maximum Charging Current | 140A | 160A | 160A | |||
| HYBRID OPERATION | ||||||
| PVINPUT(DC) | ||||||
| Nominal DC Voltage/Maximum DCVoltage | 360/500VDC | |||||
| Start-up Voltage /Initial Feeding Voltage | 90VDC/120VDC | |||||
| MPPT Voltage Range | 90-450VDC | |||||
| MaximumInput Current | 1/23A | 1/23A | 2/18A | 1/23A | 2/18A | |
| GRID 0UTPUT(AC) | ||||||
| Nominal DC Voltage | 220/230/240VAC | |||||
| Output Voltage Range | 190~253VAC | |||||
| Nominal Output Current | 31.3A | 35.6A | 44.3A | |||
| AC INPUT | ||||||
| AC Start-up Voltage /Auto RestartVoltage | 120-140VAC/180VAC | |||||
| Acceptable InputVoltage Range | 90-280VAC or 170-280VAC | |||||
| Maximum ACInput Current | 40A | 40A | 50A | |||
| Maximum AC Charging Current | 120A | 140A | 140A | |||
| GENERAL | ||||||
| PHYSICAL | ||||||
| Dimension,D×W×H(mm) | 500*390*130 | 500*390*130 | 530*420*160 | 500*390*130 | 530*420*160 | |
| Carton Dimension,D×W×H(mm) | 588*463*205 | 618*463*205 | 588*463*205 | 618*463*205 | ||
| Net Weight(kgs) | 13.6 | 14.5 | 14.6 | 14.8 | 15 | |
| Gross Weight(kgs) | 14.9 | 16 | 16.1 | 16.2 | 16.5 | |
| INTERACE | ||||||
| Communication Port | RS232/RS485/WIFVGPRS/LITHIUM BATTERY | |||||
| ENVIRONMENT | ||||||
| Humidity | 5%to 95%Relative Humidity(Non~condensing) | |||||
| Operating Temperature | -10℃~50℃ | |||||
| STANDARD | ||||||
| Compliance Safety | CE | |||||
Application:
This solar inverter is perfectly suited for residential, commercial, and industrial solar power systems. It can be used in environments requiring a reliable power supply, such as homes, small businesses, or off-grid locations. With its smart battery charging capabilities and dual PV input, it ensures maximum energy storage efficiency and continuous power availability. The dustproof design and anti-dust kit make it ideal for outdoor and industrial environments, offering robust performance even in harsh conditions.
