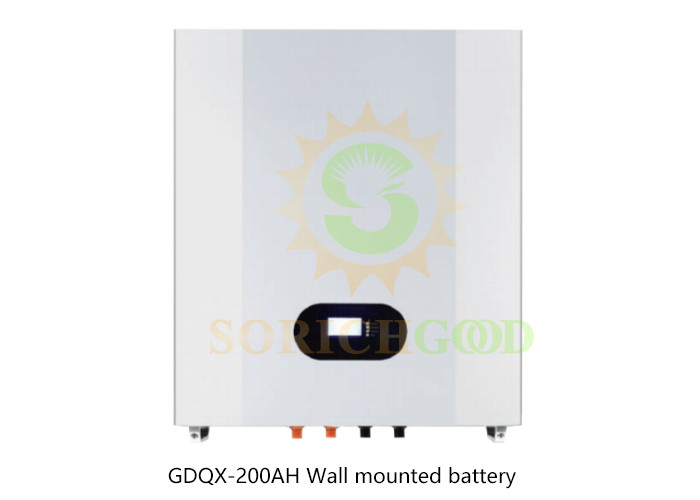

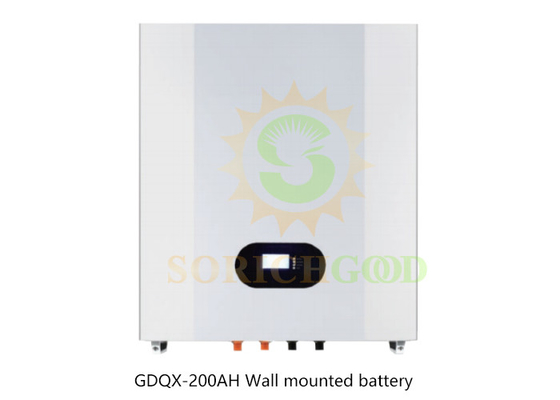

Flexible and Durable 200AH Wall-Mounted Lithium Battery Storage
Product Description:
This 200AH wall-mounted lithium battery offers a high-capacity energy storage solution with minimal maintenance required. Supporting CANBUS/RS485 communication, it allows for the connection of up to 16 parallel components, making it highly flexible for various energy systems. With an extended cycle life of over 6000 cycles at 0.5C and 80% depth of discharge (DOD), this battery is designed to last more than 10 years under standard operating conditions. The prismatic lithium iron phosphate (LiFePO4) cells ensure stable performance and safety, while the product features advanced protections including overcharge, over-discharge, and short-circuit protection. Customization options are available for charge/discharge current, voltage, and external design, making this battery adaptable for diverse customer needs.
| Electrical Characteristic | ||
| Nominal voltage | 48V | 51.2V |
| Nominal capacity | 202Ah | |
| Nominal energy | 9.7KWH | 10.34KWH |
| Internal resistance | ≤50mQ | |
| Output power(Max) | 4.8KW(Default) /7.2KW/9.6KW(Optional) |
5.12KW(Default) /7.68KW/10.24KW(Optional) |
| Self discharge rate | ≤3%per month@25℃ | |
| Maxconnection | 16pcs in parallel | |
| Cycle life | >6000 cycles@0.5c@80%/DOD@25℃ | |
| Working temperature | -20℃-60%/-4°F-140°F | |
| Mechanical characteristic | ||
| Batterycelltype | Prismatic battery cell | |
| Battery cell material | Lithium iron phosphate | |
| Battery cell capacity | 202Ah | |
| Battery celllayout | 15S1P | 16S1P |
| Shell material | Iron | |
| Dimension | 620*520*256mm | |
| Netweight | 80KG/176LBS | 84KG/185LBS |
| Warranty | 5years | |
| IP level | IP54 | |
| ACcessory | 1.2m 4AWG positive&negative wire*2pcs User manual*1pcs,1m RJ45 wire*1pcs |
|
| Packaging information | Quick connect terminal*4(positive*2/Negative*2) RS485 terminal*2/CANBUS terminal*1 Address dial*1/soc indicator*1 LCD display dashboard*1 |
|
| Charging&Discharging Characteristic | ||
| Standard charge current | 50A | |
| Maximum charging current | 100A(Default)/150A/200A(Optional) | |
| Charge method | CC-CA | |
| Charge cut-off voltage | 54.75V | |
| Standard discharge current | 50A | |
| Maximum discharge current | 100A(Default)/150A/200A(Optional) | |
| Discharge cut-off voltage | 40.5V | |
| BMS Characteristic | ||
| Maximum discharge current | 100A(Default)/150A/200A(Optional) | |
| Short cuicuit protection | Support,recover when re-charge | |
| BMS pre-charge function | Support1ms-5000ms | |
| Overcurrent protection | 110A(Default)/160A(150A Model)/210A(200AModel) | |
| Overcurentreaction time | 30ms | |
| Overcharge protection | 54.75V | 58.4V |
| Overdischarge protection | 40.5V | 43.2V |
| Communication method | CANBUS/RS485 | |
| working temperature (recommended) |
-20℃-70%/-4°F-158°F | |
Application:
This 200AH lithium battery is ideally suited for residential, commercial, and industrial energy storage systems. It provides reliable backup power for solar PV installations, microgrids, and off-grid energy storage solutions. Its robust design and long cycle life make it ideal for applications where durability and efficiency are critical, such as in remote locations or where grid reliability is unstable. This battery can also be deployed in combination with renewable energy systems like wind and solar, ensuring clean and consistent energy supply over extended periods.
