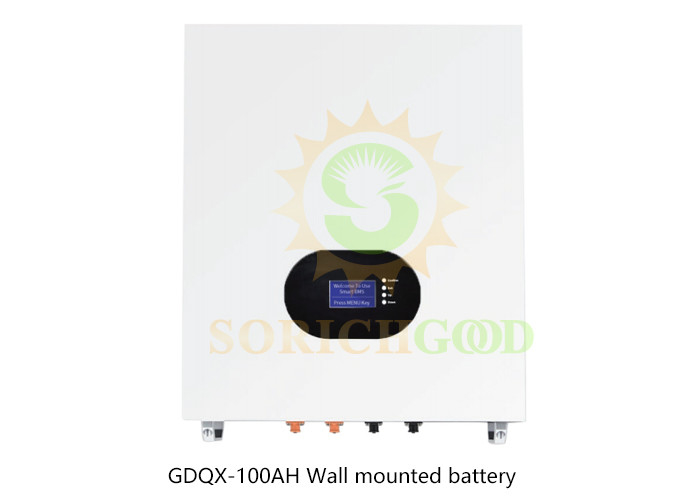

The 100Ah wall-mounted lithium battery provides an efficient and safe energy storage solution for residential and small commercial users. This product requires no maintenance, supports CANBUS/RS485 communication, and allows connection of up to 16 parallel components. With a cycle life of up to 6000 cycles and a product design life of more than 10 years, it is built for long-term use. The battery is equipped with an advanced BMS system, offering comprehensive protection against overcharge, over-discharge, and overcurrent to ensure safe operation.
| Electrical Characteristic | ||
| Nominal voltage | 48V | 51.2V |
| Nominal capacity | 100Ah | |
| Nominal energy | 4.8KWH | 5.12KWH |
| Internal resistance | ≤50m2 | |
| Output power(Max) | 4.8KW | 5.12KW |
| Self discharge rate | ≤3%per month@25℃ | |
| Max connection | 16pcs in parallel | |
| Cycle life | >6000 cycles@0.5c@80%/DOD@25℃ | |
| Working temperature | -20℃-60%/-4°F-140F | |
| Mechanical characteristic | ||
| Battery cell type | Prismatic battery cell | |
| Battery cell material | Lithium iron phosphate | |
| Battery cell capacity | 100Ah | |
| Battery cell layout | 15S1P | 16SIP |
| Shell material | Iron | |
| Dimension | 605*405*200mm | |
| Net weight | 45KG/100LBS | 47KG/103LBS |
| Warranty | 5years | |
| IP level | IP54 | |
| ACcessory | 1.2m 4AWG positive&negative wire*2pcs User manual*1pcs,1m RJ45 wire*1pcs |
|
| Packaging infomation | Quick connect terminal*4(positive*2/Negative*2) RS485 terminal*2/CANBUS terminal*1 Address dial*1/soc indicator*1 LCD display dashboard*1 |
|
| Charging&Discharging Characteristic | ||
| Standard chargecurrent | 50A | |
| Maximum charging current | 100A | |
| Charge method | CC-CA | |
| Charge cut-offvoltage | 54.75V | |
| Standard discharge current | 50A | |
| Maximum discharge current | 100A | |
| Discharge cut-offvoltage | 40.5V | |
| BMS Characteristic | ||
| Maximum discharge current | 100A(Maximum,default) | |
| Short cuicuit protection | Support,recover when re-charge | |
| BMS pre-charge function | Supportims-5000ms | |
| Overcurrent protection | 110A(Default value) | |
| Overcurrent reaction time | 30ms | |
| Overcharge protection | 54.75V | 58.4V |
| Overdischarge protection | 40.5V | 43.2V |
| Communication method | CANBUS/RS485 | |
| working temperature (recommended) |
-20℃-70%/-4F-158F | |
