BMS-Equipped Lithium Battery Storage for Residential and Commercial Applications
Product Description:

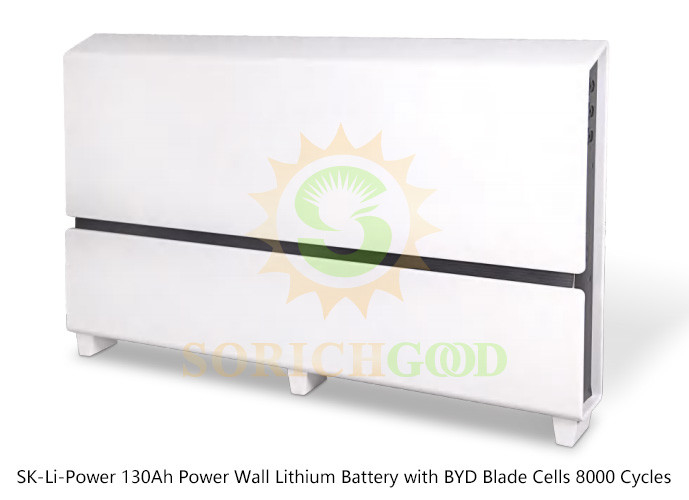

The SK-51.2V130Ah LiFePO4 battery is a highly efficient energy storage system, designed for superior safety and durability. With an impressive cycle life of over 8000 cycles and a service life of more than 10 years, this battery is equipped with advanced BMS (Battery Management System) to ensure maximum protection against overcharge, over-discharge, short circuit, and over-temperature conditions. The battery is scalable, allowing for parallel connections of 1 to 15 units, making it ideal for a wide range of residential, commercial, and industrial applications.
| MODEL SPECIFICATION |
SK-51.2V130Ah Li-Power51.2V130AH |
| Battery Type | LiFePO4 |
| Total Energy | 6656Wh |
| Usable Energy(80%DOD) | 5990Wh |
| Voltagewindow | 44.8～58.4V |
| FastCharge Voltage | 57.6V |
| Folat Charge Voltage | 56.0V |
| Low DC Cut-offVoltage | 46.8V |
| Max.continue discharge current | 100A |
| Max.pulse discharge current | 150A 1Sec. |
| Max.continuechargecurrent | 65A |
| Scalable | 1~15 in parallel |
| Communication | CAN,RS485 |
| Cycle life | >8000 Cycles@(+25℃,0.5C,90%DOD,60%EOL) |
| Terminal | M8 |
| Storage temperature | 0℃~30℃ |
| Storageduration | 6months at 25℃ |
| Safety standard | UN38.3,MSDS |
| IP degree | IP20 |
| PROTECTION | |
| Protection | Overcharge protection,Over discharge protection,Over current protection,Shortcircuit protection,Overtemperature protection |
| AMBIENT | |
| working Temperature | -10℃~+50℃ |
| Humidity | 0~95%(no condensation) |
| DIMENSION | |
| LXWXH(products size)mm | 1090*685*120mm |
| LXWXH(package size)mm | 1150*720*205mm (UN wooden cases) |
| Weight(NWKg) | 78.6Kg |
| Weight(GWKg) | 97.2Kg |
| 20FT QTY(UNIT) | 140 |
Application:
This battery system is suited for residential solar energy storage, industrial energy backup, and grid-connected systems, offering reliable energy support for home appliances, communication systems, and commercial power needs.
