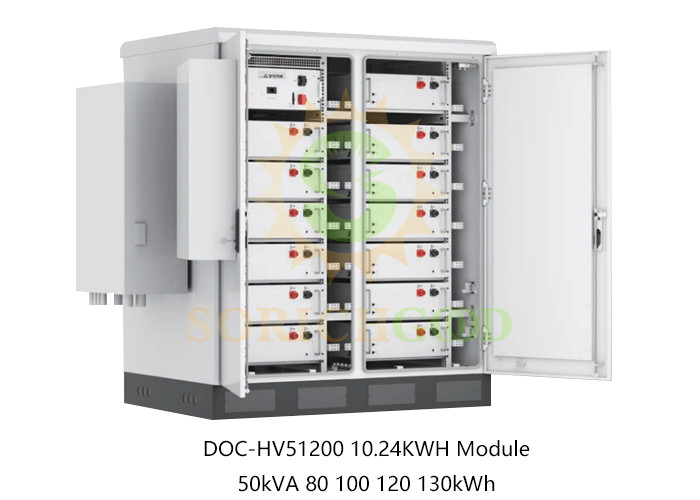

This Commercial & Industrial ESS (Energy Storage System) is designed for high-capacity energy storage in industrial settings. With a modular design that allows scalability up to 130kWh, it provides a reliable solution for large-scale energy needs. The integrated BMS (Battery Management System) ensures optimal performance, safety, and monitoring, while the high-performance PCS (Power Conversion System) enhances overall system stability. The system is pre-configured for fast installation, saving on-site setup time and reducing operational costs.
| System Specification | |||||
| Nominal Output Power/UPS Power (W) | 5000 | ||||
| AC Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380,230/400Vac | ||||
| Grid Type | Three phase | ||||
| Energy Configuration(kWh) | 81.92 102.4 122.88 133.12 | ||||
| Dimension (WxDxH) | 1400*1100*1650mm/55.1*43.3*65 in(no contain inverter) | ||||
| Weight Appr. (no contain inverter) | 81.92kgs/181 Ibs 1172.0kgs /2584 lbs 1294.4kgs/2854 Ibs 1375.6kgs/3033 Ibs | ||||
| Max Charge &Discharge Current(A) | 100 | ||||
| Battery Operating Voltage (V | 500~800 | ||||
| Battery Chemistry | LiFePO4 | ||||
| IP Rating of Endosure | IP55 | ||||
| System Certification | UN38.3,IEC62619,CE,CEI 0-21,VDE-AR-N 4105,IEC 62109 | ||||
| Installation Style | Floor-Mounted | ||||
| Warranty | 10 years | ||||
| Inverter Technical Specification | |||||
| Max.PV Input Power (W) | 65000 | ||||
| Max.PV Input Current (A) | 36+36+36+36 | ||||
| Rated PV Input Voltage(Vdc) | 600 | ||||
| Start Up DC Voltage(Vdc) | 180 | ||||
| MPPT Voltage Range(Vdc) | 150-850 | ||||
| Max.PV Short-circuit Current(A) | 55+55+55+55 | ||||
| Number ofMPPT | 4 | ||||
| Peak Power (off grid) | 1.5 time of rated power,10s | ||||
| Power Factor | 0.8 leading to 0.8 lagging | ||||
| THD | <3% | ||||
| DC injection current(mA) | <0.5In | ||||
| Display | LCD | ||||
| Operating Temperature Range(℃) | -40~60(>45℃ derating) | ||||
| Relative Humidity | 15%～85%(No Condensing) | ||||
| Dimension (WxDxH,mm) | 420x233x670 | ||||
| Inverter Communication | CAN,RS485,WIFI,ETH | ||||
| Safety EMC/Standard | IEC/EN62109-1,IEC/EN 62109-2,IEC/EN,61000-6-1,IEC/EN 61000-6-2,EC/EN61000-6-3,IEC/EN61000-6-4 | ||||
| Grid Regulation | VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI021,EN50549-1,G98,G99,C10-11,UNE217002,NBR16149/NBR16150 | ||||
| Max,Efficiency | 97.6% | ||||
| Max.charging/discharging efficiency | 91% | ||||
| Max Parallel connection sets | 10 | ||||
| Battery Technical Specification | |||||
| Battery Module Nominal Voltage(V) | 409.6 | 512 | 614.4 | 665.6 | |
| Battery Capacity (Ah) | 200 | ||||
| Battery Energy (kWh) | 81.92 | 102.4 | 122.88 | 133.12 | |
| BMS Communication | CAN | ||||
| BMS parallel support connection | 3sets(Standard),32 sets(Extra BAU module) | ||||
| Max Charge &Discharge Current(A) | 100 | ||||
| Operating Temperature Range | Charge:0~55℃/Discharge:-20℃~55℃ | ||||
| Cycle Life | ≥6500(@25℃±2℃,0.5C/0.5C,70%EOL) | ||||
| Short Circuit Protection | YES | ||||
| Over Current Protection | YES | ||||
| Over Charge Protection | YES | ||||
| Over Temperature Protection | YES | ||||
| Cell Over Voltage Protection | YES | ||||
| Cell Over Under Protection | YES | ||||
| Cell Discharge Protection | YES | ||||
The Commercial & Industrial ESS is suitable for various large-scale industrial and commercial energy applications, including:
