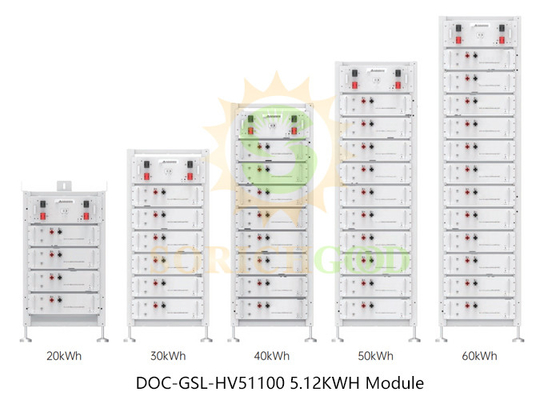

LiFePO4 Lithium Battery Storage with Nominal Capacity Range from 20.48kWh to 61.44kWh
Product Description:
The Commercial & Industrial ESS is a highly modular energy storage system designed for high-capacity applications. With a nominal capacity range from 20.48kWh to 61.44kWh, this system is ideal for large-scale energy needs. Built with LiFePO4 batteries, it offers robust energy storage with over 6500 life cycles. Featuring a nominal working current of 100A and a CAN/RS485 communication interface, the system operates efficiently across a wide temperature range of 0°C to 45°C (charge) and -10°C to 50°C (discharge). This floor-standing system is suitable for both indoor and outdoor installations with its IP20 waterproof rating, ensuring reliability in various environments. Additionally, the integrated BMS provides real-time monitoring for enhanced safety and operational longevity.
| Nominal Capacity | 20.48kWh | 30.72kWh | 40.96kWh | 51.2kWh | 61.44kWh |
| Cell Matching | 64SIP | 96S1P | 128SIP | 160SIP | 192SIP |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512V | 512V |
| Working Voltage Range | 176-233.6V | 264-350V | 352-467.2V | 440-584V | 537.6-691.2V |
| Weight | 201.4kgs/444 Ibs | 309.6kgs/683 Ibs | 492.8kgs/1086 Ibs | 499kgs/1100 Ibs | 582.2kgs/1284 Ibs |
| Dimension(W*D*H) | 553*503*1011mm/ 21.8*19.8*39.8 in |
553*503*1620mm/ 21.8*19.8*63.8 in |
553*503*1620mm/ 21.8*19.8*63.8 in |
553*503*2230mm/ 21.8*19.8*87.6 in |
553*503*2230mm/ 21.8*19.8*87.8 in |
| Battery Type | LiFePO4 Battery | ||||
| Nominal Working Current | 100A | ||||
| Communication Port | CAN/RS485 | ||||
| Working Temperature Range | Charge:0-45℃/Discharge:-10-50℃ | ||||
| Waterproof | IP20 | ||||
| Installation Method | Floor-standing | ||||
| Cycle Life | 6500 | ||||
| Peak Charge/Discharge Current (@25℃,5S) |
150A | ||||
| Discharge Rate of Module <3.5%/month/@25℃ | |||||
Application:
This Commercial & Industrial ESS is ideal for industrial parks, large commercial operations, microgrids, and energy storage power stations. It provides peak shaving, load balancing, and backup power solutions for high-demand energy consumers.
