11.52kWh to 30.72kWh High-Capacity Lithium Battery Storage for Renewable Energy Management
Product Description:

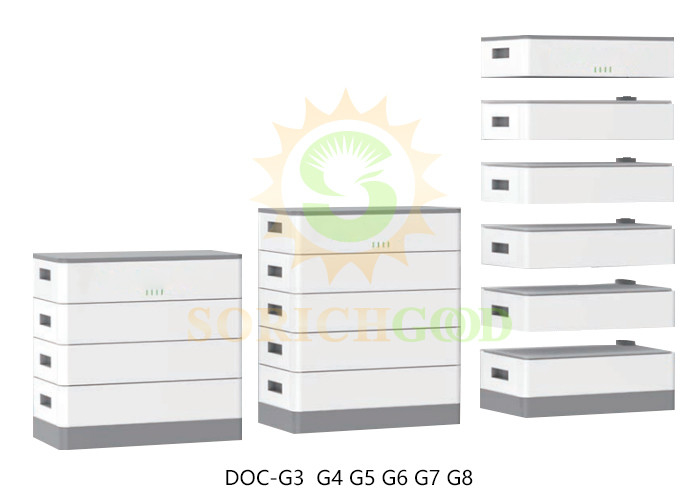

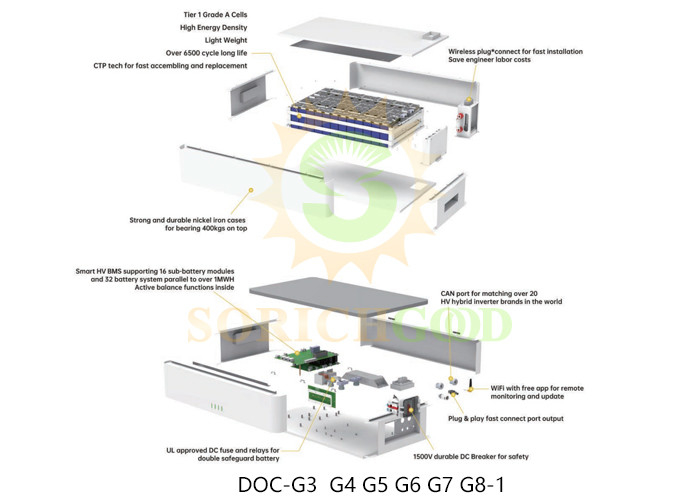

The HV Power Storage Brick is a high-capacity energy storage solution that supports both scalability and efficient energy management. Featuring a LiFePO4 battery, it comes with a nominal voltage ranging from 230.4V to 614.4V and offers capacities from 11.52kWh to 30.72kWh. Its modular structure enables easy installation and allows for parallel connection of up to 16 units, achieving a total scalable energy capacity of up to 122.88kWh. With a robust waterproof rating of IP55, it is ideal for floor-standing installation in both indoor and outdoor environments. Additionally, this system is equipped with GK’s advanced BMS technology, ensuring stable and long-lasting battery performance. The system is compatible with most leading inverters and provides smart monitoring via CAN/RS485 communication ports.
| Nominal Capacity | 11.52kWh | 15.36kWh | 19.20kWh | 23.04kWh | 26.88kWh | 30.72kWh |
| Cell Matching | 72S1P | 96S1P | 120S1P | 144S1P | 168S1P | 192S1P |
| Nominal Voltage | 230.4V | 304.2V | 384V | 460.8V | 537.6V | 614.4V |
| Working Voltage Range | 198-259.2V | 264-345.6V | 330-432V | 396-518.4V | 462-604.8V | 528-691.2V |
| Weight | 157.5kgs / 347 Ibs |
198.5kgs/ 437 Ibs |
242.5kgs/ 535 Ibs |
285kgs/ 628 Ibs |
327.5kgs/ 722 Ibs |
370kgs/ 816 Ibs |
| Dimension (W*D*H) | 680*378* 660mm/ 26.8*14.9* 26.0 in |
680*378* 800mm/ 26.8*14.9* 31.5 in |
680*378* 940mm 26.8*14.9* 37 in |
680*378* 1080mm/ 26.8*14.9* 42.5 in |
680*378* 1220mm/ 26.8*14.9* 48.0 in |
680*378* 1360mm / 26.8*14.9* 53.5 in |
| Battery Type | LIFePO4 Battery | |||||
| Nominal Working Current | 50A | |||||
| Communication Port | CAN/RS485 | |||||
| Working Temperature Range | Charge:0-45℃/Discharge:-10-50℃ | |||||
| Waterproof | IP55 | |||||
| Installation Method | Floor-standing | |||||
| Cycle Life | 6000 | |||||
| Peak Charge/Discharge Current (@25℃,5S) |
63A | |||||
| Discharge Rate of Module | ≤3.5%/month/@25℃ | |||||
| Module Series Connection /Module |
3S-8S | |||||
| Parallel Connection | 16units in parallel | |||||
Application:
This storage solution is designed for large-scale residential, commercial, and industrial energy storage applications. It is ideal for integrating with solar and hybrid inverters in microgrid setups, backup power systems, and other renewable energy installations. Its flexibility and expandability make it suitable for energy-intensive industries, electric vehicle charging infrastructure, and commercial renewable energy management systems.
