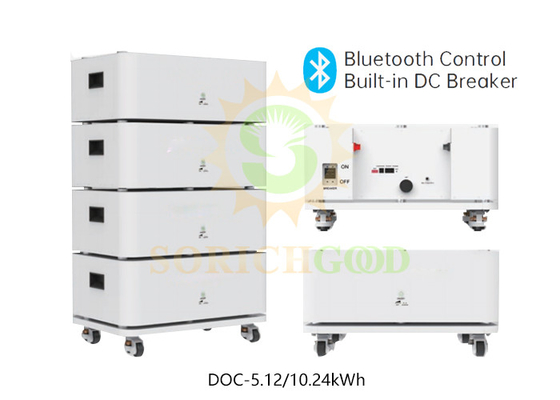

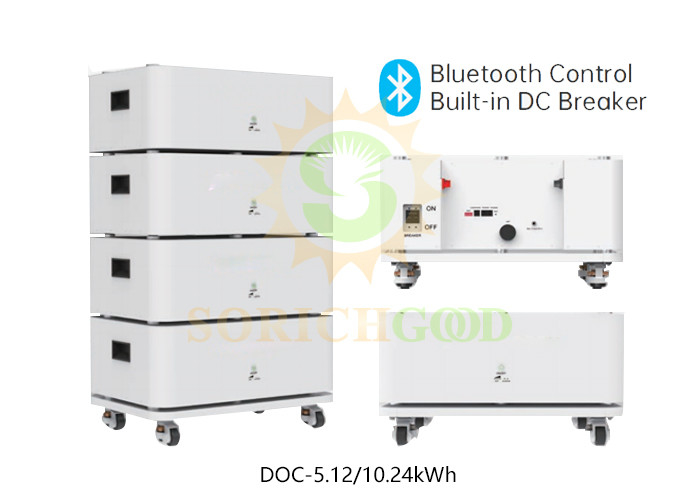

The Power Storage Brick is a reliable energy storage solution that operates with a 51.2V LiFePO4 Battery, offering 5.12kWh or 10.24kWh capacities. Designed for long-term performance, this product is certified under IEC62619 and CE standards, with a lifecycle of more than 6500+ cycles. It ensures Smart App with Bluetooth Functionality and supports Gk's self-developed BMS, which has been rigorously tested for over 10 years. With scalability options up to 163kWh in parallel, it provides unmatched flexibility for various applications, offering compatibility with most leading inverters.
| Battery Chemistry LiFePO4 Battery | ||
| Rated Voltage | 51.2V | |
| Capacity | 100AH | 200AH |
| Energy | 5.12kWh | 10.24kWh |
| Max.charge Voltage | 56Vdc | |
| Max.discharge Voltage | 46Vdc | |
| Max.charge Current | 100A | 100A |
| Max.discharge Current | 100A | 150A |
| Dimension(W*H*D) | 580*390*200mm/22.8*15.3*7.9 in | 685*435*231mm/26.9*17.1*9.1 in |
| Weight Approximate | 65kgs/143 Ibs | 100.5kgs/221 Ibs |
| Cycle Life(25±2℃,0.5C/0.5C,80%EOL) | 6500 | |
| Certification CB IEC62619,CE,MSDS,UN38.3 | ||
The Power Storage Brick is suitable for home energy storage, commercial systems, and off-grid solar applications. Its modular and scalable design makes it an ideal solution for users needing reliable energy storage for solar energy systems, hybrid inverters, and backup power solutions.
Supports global air and sea shipping.
Our products are sold all over the world, you can rest assured.
