13kWh 15kWh DB Lithium Battery Storage High Capacity Portable Energy Solutions For High Demands

13kWh 15kWh DB Lithium Battery Storage High Capacity Portable Energy Solutions For High Demands

  • Highlight

    DB Lithium Battery Storage

    ,

    15kWh Lithium Battery Storage

    ,

    13kWh lithium ion storage battery

  • Cell Chemistry
    All Models: LFP
  • Cell Configuration
    16S1P/8S1P
  • Nominal Energy
    12288 Wh/14336 Wh/15360 Wh/16077 Wh
  • Nominal Voltage
    All Models: 51.2 V
  • Working Voltage Range
    DDDKYG51240, DDDKYG51280: 43.2~57.6 VDC/DDDLSG51300, DDDLSG51314: 21.6~28.8 VDC
  • Max. Charge/Discharge Current
    DDDKYG51240: 200 A/DDDKYG51280: 280 A/DDDLSG51300: 280 A/DDDLSG51314: 100 A
  • Cycle Life
    All Models: 6000 Cycles
  • IP Rating
    All Models: IP21
  • Place of Origin
    China
  • Brand Name
    DS
  • Certification
    IEC62619/EN61000-6-1/ EN61000-3/RoHS/UN38.3
  • Model Number
    DS-DBL
  • Document
  • Minimum Order Quantity
    6 set
  • Price
    consult prices online
  • Packaging Details
    600*425*468/560*330*950/560*330*910/560*330*950
  • Payment Terms
    T/T

13kWh 15kWh DB Lithium Battery Storage High Capacity Portable Energy Solutions For High Demands

13kWh 15kWh DB Lithium Battery Storage High-Capacity Portable Energy Solutions for High Demands

13kWh 15kWh DB Lithium Battery Storage High Capacity Portable Energy Solutions For High Demands 0

Product Description

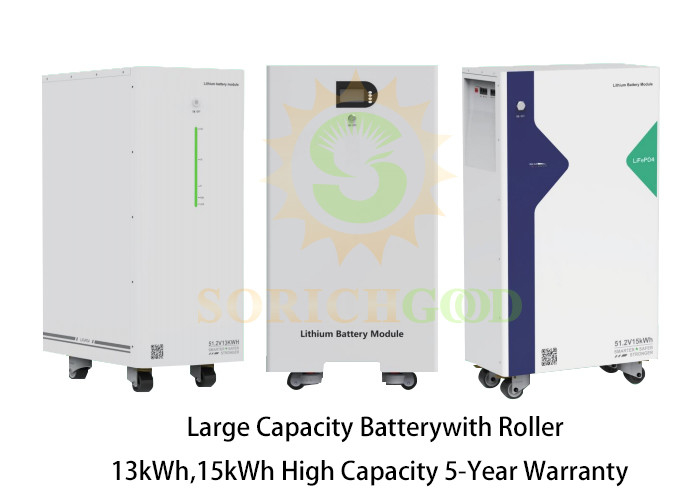

The DB Large Capacity Battery with Roller Series (13kWh, 15kWh) is designed for users who require high-capacity, portable energy storage solutions with easy mobility. Built with advanced LFP (Lithium Iron Phosphate) technology, these batteries offer exceptional safety, longevity, and performance. The inclusion of rollers ensures that these high-capacity units can be easily moved and positioned wherever needed, making them ideal for applications that demand flexibility and convenience. The intelligent battery management system (BMS) continuously monitors the battery status, providing real-time protection and ensuring optimal performance. This series is also designed to be environmentally adaptable, with a wide operating temperature range from -20°C to 60°C, ensuring stable and reliable performance in diverse conditions.





Total 4 Model



Technical specifications
Model DDDKYG51240 DDDKYG51280 DDDLSG51300 DDDLSG51314
Battery
Cell Chemistry LFP
Cell Configuration 16S1P 8S1P
Nominal Energy (Wh) 12288 14336 15360 16077
Nominal Capacity(Ah) 240 280 300 314
Nominal Votage(V) 51.2
Working Voltage
Range (VDC)
43.2~57.6 21.6~28.8
Max.Charge/
Discharge Current(A)
200 280 100
BMS Communication CAN2.0/RS485/RS232



General Information
Dimension[L*W*H](mm) 505*320*740 460*240*871.5 460*240*837 460*240*871.5
Packing Dimension
[L*W*HJ(mm)
600*425*468 560*330*950 560*330*910 560*330*950
Weight (kg) 120 130 118 130
Packing Weight (kg) 130 145 136 145
Permissible Altitude(m) <4000m(>2000m derating)
DispalyScreen LCD
IP Rating IP21
Working Temperature
(℃)
-20~60
Relative Humidity 0~95%,no condensation
Cycle Life 6000 cycles
Warranty 5years
Installation Type Portable
Certification IEC62619/EN61000-6-1/EN61000-3/RoHS/UN38.3



Application



The DB Large Capacity Battery with Roller Series is perfect for scenarios where high energy demands meet the need for portability and flexibility. These batteries are especially suitable for temporary installations, emergency power supply setups, and locations where quick, easy access to power is critical. The combination of high capacity and mobility makes this series an excellent choice for event organizers, mobile operations, and businesses requiring a reliable backup power source that can be easily relocated. The robust design and strong environmental adaptability ensure that these batteries can perform reliably in various challenging conditions.





Shipping Methods



Supports global air and sea shipping
